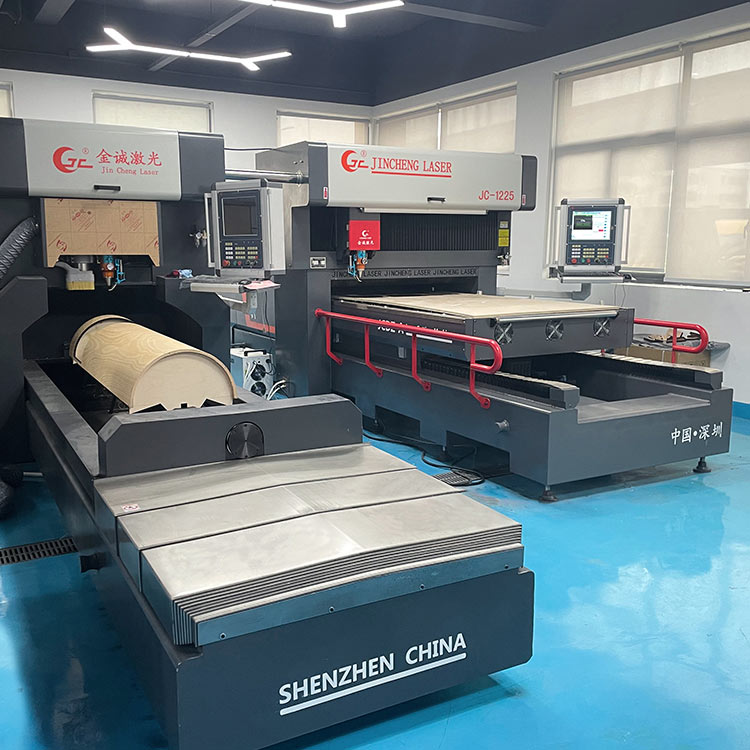

Flatbed &Rotary Wood CO2 Laser Die Cutting Machine for Die Board Making


1000Watt  Flatbed &Rotary Die Board Laser Cutting Machine for Die Making

YTX-10N Flat & Rotary die board laser machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.

 With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make both flat and rotary dies.

 1000Watt  Flatbed


1. The machine has the laser cutting proprietary energy control functions, machine operator functions, laser operation function, and expert cutting technology library, remote diagnostics and other functions.

2. Quick marking function: Make laser cutting and marking in one step. Realizing high-efficient and energy-saving flat die making job. (Optional)

3. Drilling router together with laser cutting head, can make the hole automatically.

4. Germany PA system: Auto focus follow system, 5 types line cut automatically at same time, continue cut once power off, before cutting show the drawing path simulation

5. Pulse cutting function, the cutting kerf is clamping the cutting rule very tight.

6. Anti-collision system to protect the laser head from being damaged when power is suddenly off or wrong operation.

7.  Auto focus system to make sure perfect even cutting line when the plywood is not flat.

8. Auto compensation system for rotary laser to adjust the tolerance when the rotary die board is tiny twisted.

Laser Source Characters:

 1. Equip with red laser beam in optical path , indicator function to select starting point easily, also scan the plywood size and drawing size

2. The unique structural design of the marble resonant cavity, resonant cavity is more stable, completely solved the shortcomings of epoxy plate high-voltage ignition.

3. Large-screen touch-screen control functions, more user-friendly design, easy to understand.

4. Unique stainless-steel gas tank can be pre-mixed gas, fast inflatable, immediately out of light, reducing the inflation time, and to cut the waiting time of the inflatable boot.

5. Import adjustment end plate, allowing a more precise adjustment of laser output mode, convenient, reliable, and safe.

6. All the optical lens imported from USA II VI Inc. making laser output power higher and more stable pattern, all the optical lens assembly are in the 100% clean room to complete, is the only manufacturer with clean assembly room.

7. By optimizing the vacuum and gas transmission system, the laser can work stably with a small gas consumption. High machining quality and clean and reliable sealing materials produce a very tight and reliable vacuum system. A set of reliable gas mixing device with unique proportional control function is designed which can provide corresponding gas consumption ratio according to the required power level

8. The same low cost of maintenance is also considered in every aspect of the WLG CO2 laser design, Every component of the WLG CO2 laser has been thoughtfully designed and durability tested. The cooling system is designed with plenty of margin to keep all components and gas temperatures in the resonator below specified values. High machining quality, particle filters, and grease separators are used in lasers to improve the lifetime of optical devices. Due to the inevitable downtime caused by scheduled routine maintenance , it is also possible to plan and manage more effectively through the user interface control panel

9. Entirely through ISO9002 quality system certification of the manufacturers, is the only one to do high-power CO2 laser manufacturers through this certification.

1000Watt  Flatbed

Machine Parameters

Model No.

YTX Series



The table moving

Gantry construction

Laser output power

High power axial flow CO2 laser source

X-axis travel


Y-axis travel


Z-axis travel


The maximum cutting board size


Cutting speed

Flat: 130~150m/h

Rotary: 75-85m/h

Re-Positioning Precision


Controlling system

Germany PA

Transmission system

Ball screw & Linear guide (TAIWAN)

Driving system

Japan high-precision servo drive and motors

Optical system


Moving structure


Chiller system

Made in China

Laser generator gas matched

He, N2, CO2 (99.999%)

Laser cutting thickness


Certificate & Accuracy Report:

YT48-10N Flat Die Board Laser Cutting Machine for Die Making

(Moving accuracy testing by laser meter, Tolerance is 0.02mm)

1000Watt  Flatbed

YTX-10N 1000W Flatbed
