As the market shifts toward High-Mix, Low-Volume (HMLV) production, custom die shops and packaging design departments face a common bottleneck: managing a flood of short-run orders (50 to 100 pieces) that require next-day delivery. Relying on traditional steel rule dies for these tiny runs drains your profits, making an automated Flatbed Digital Cutter an essential survival tool for the modern shop floor.

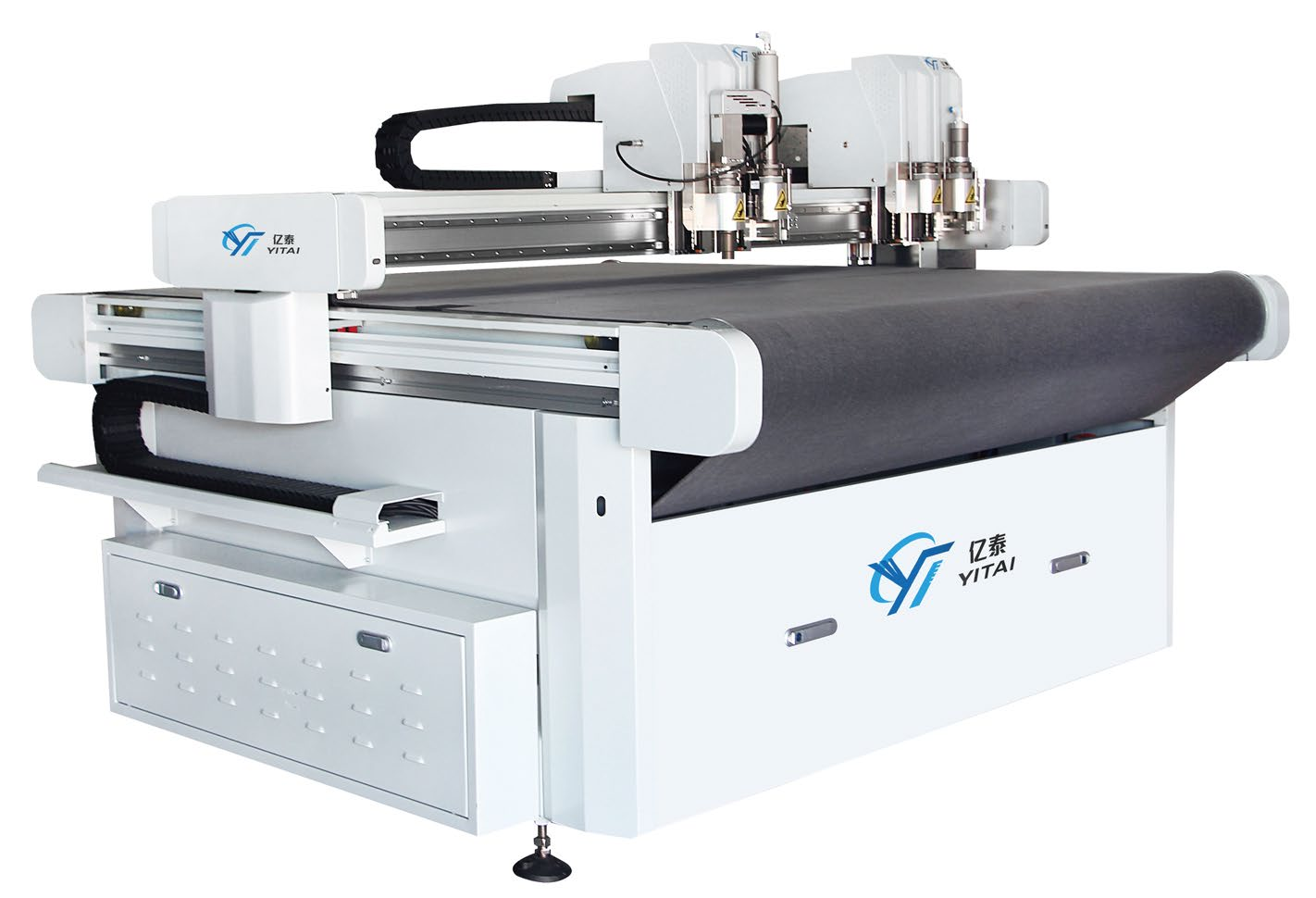

However, standard single-head cutters often become operational bottlenecks during peak hours. Instead of investing in a second machine—which doubles your floor space, power consumption, and labor costs—Yitai offers a smarter alternative: the Double-Side Mutual-Moving Cutting Machine.
Featuring a unique synchronized dual-blade design integrated with an automatic feeding system, this series allows two independent knives to cut simultaneously on a single platform. You achieve the productivity of two standard machines for the price of one, while saving 50% on factory floor space, electricity, and labor costs.
By simply switching the modular tool heads, one machine handles full cutting, kiss-cutting, V-grooving, creasing, and drawing across various non-metal flexible composites:
Packaging: Honeycomb board, corrugated cardboard, greyboard, kraft paper.
Foam & Cushioning: EPE foam, EVA foam, EPDM liners.
Industrial Components: Mechanical gaskets, double-sided tapes, PET, and PC films.
| Specification / Model | GBR1410-PRO | GBR2516-PRO | GBR3020-PRO |
|---|---|---|---|
| Cutting Area | 1400×1000 mm | 2500×1600 mm | 3000×2000 mm |
| Dimensions (L×W×H) | 1970×1770×1440 mm | 3350×2220×1420 mm | 3900×2600×1380 mm |
| Max Speed / Accuracy | Max. 1400mm/s | Repeat Accuracy: 0.05mm | ||
| Max Cutting Thickness | 55mm (Vacuum fixing method) | ||
| Compatible Materials | EPDM, EVA, EPE foam, double-sided tape, PET, PC, paperboard | ||
| Standard Tools | Oscillating tool, Pen, Creasing tool, Laser positioning | ||
| Optional Upgrades | Pneumatic Oscillating tool, V-Cut, Kiss-Cut, CCD camera, Large Vision/Projection Positioning Systems | ||
| Power & Voltage | 7.5KW - 12.5KW | 220V/380V 50HZ | ||
| Graphic Formats | DXF, HPGL, PLT, PDF | ||
Unlike CO2 lasers that melt thick EVA foam and burn paperboard—leaving charred, smelly, black edges—Yitai’s high-frequency Oscillating Knife Cutting Machine uses physical slicing. This delivers perfectly clean, burr-free edges with zero thermal damage.
While budget models rely on flimsy rubber belts that stretch and degrade precision over time, Yitai builds heavy industrial machinery utilizing premium global components to eliminate accuracy drift:
Drive System: MG-AL Alloy Tabletop & Pinion system (no cheap belts) for near-zero maintenance.
Motors & Guides: Genuine Japanese Mitsubishi servo motors, Japanese THK modules, and Taiwanese HIWIN guide rails.
Platform: High-rigidity aviation aluminum flatbed that remains 100% flat under heavy batch production.
Every machine is fully CE & ISO certified. We offer complete OEM services for custom branding and specialized sizing to match your specific workshop workflow.
Ready to upscale your short-run production? Contact our engineering team today for a free customized cutting solution and quotation.
Send an inquiry right now, our sales will reply with the price within 12 hours.
