600Watt CO2 Laser Die Board Cutting Machine

PRODUCT FEATURES

YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

YT46F-60 laser tube cutting machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.

 With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make flat dies.


YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

Machine Parameters

Model No.

YT46F

Power

400W 600 W

The table style

Gantry construction with fixed cutting head

Laser source

laser tube

X-axis travel-length

1200mm

Y-axis travel-length

1800mm

Cutting speed

18 mm die board

2mm stainless steel


40-50m/H

60m/H

Re-Positioning Precision

≤0.02mm

Cutting width kerf

0.45mm, 0.71mm, 1.05mm, 1.07mm

Transmission system

Ball screw & Linear guide (TAIWAN)

Driving system

Japanese technology

Optical system

US program

Overall dimensions (L*W*H)

4600*2300*1800mm

Gross Weight

2000kg

Laser cutting thickness

1-25mm(plywood, acrylic board, rubber, pvc board, leather, MDF board)

Metal cutting thickness

Carbon steel/Iron steel: 4mm

Stainless steel :2 mm


Consumption:

Total rated Power

Electricity consumption

400W laser tube

5KW

5degree/H

3000 r/set


YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

YT46F-60 600Watt CO2 Laser Die Board Cutting Machine

FUNCTION AND FEATURES

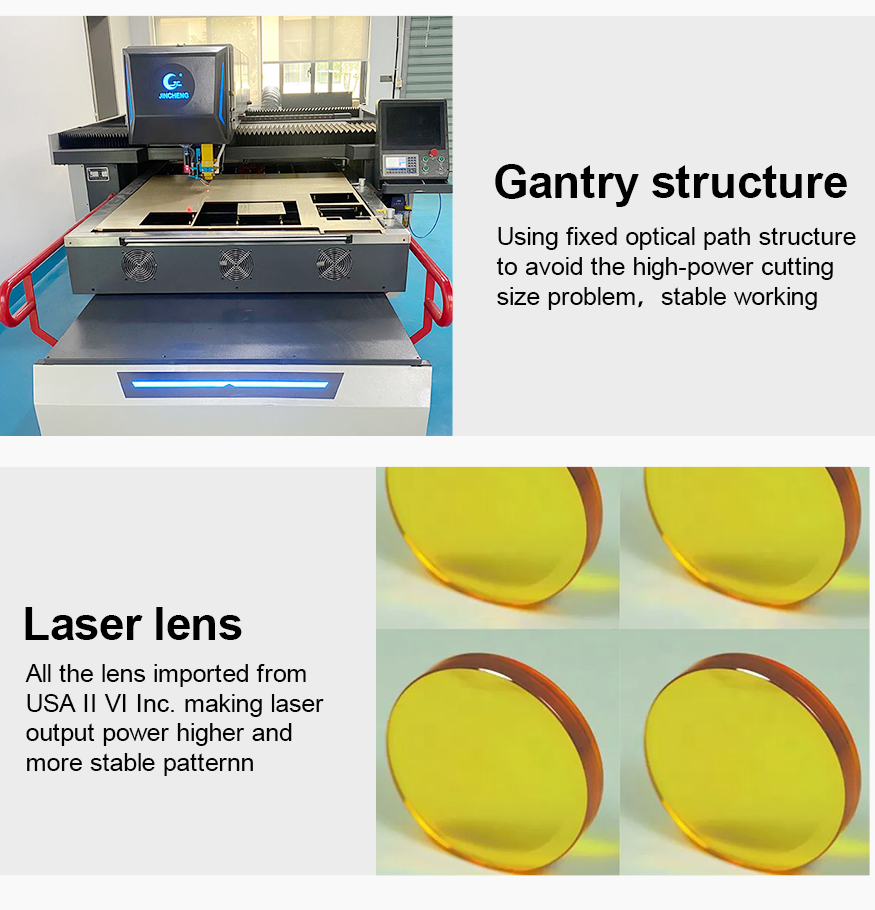

 1. Gantry structure with fixed cutting head, stable working, small floor space required for machine.

2. Adopt domestic most advanced 600W CO2 sealing type water-cooled laser tube, combined with good precision of CNC control mechanical systems. It can reach cutting die manufacturing   precision and at the same time greatly reduce the production cost. Suitable for wooden cutting die and precision electronic cutting die production.

3. Using fixed optical path structure, to avoid the high-power cutting size problem because of the optical path deviation.

4. Unique smoke exhausts design; create a good working environment for you. Using the most advanced laser tube in China and no need to add any auxiliary gas when cutting, laser cutting die consumption is extremely low. Only 220v external power source is needed and making low cost. There is no need to wait long time for start and running the machine.

5. Can one-time cutting 15mm-23mm plywood, PVC board, organic glass. The cutting line width can be 0.45mm, 0.71mm, 1.05mm.

6. Simple and clear-cutting line adjustment technology. Cutting software can be compatible with AutoCAD. CorelDraw, Adobe Photoshop. Editing path is very easy and convenient.



LASER TUBE CHARACTERS:

1. All the optical lens imported from USA II VI Inc. making laser output power higher and more stable pattern, all the optical lens assembly are in the 100% clean room to complete, is the only manufacturer with clean assembly room.

2. Entirely through ISO9002 quality system certification of the manufacturers, is the only one to do CO2 laser manufacturers through this certification.


Certificate & Accuracy Report:

YT48-10N Flat Die Board Laser Cutting Machine for Die Making

(Moving accuracy testing by laser meter, Tolerance is 0.02mm)


1500w Flat

YTX-10J 1000W  CNC Die Making CO2 Flat

Flatbed


>>> Our Services

1. English-speaking engineer is available for installation and training.

2. One-stop die making supply,meets every diemaker’s and diecutter’s needs with a full line of tools and equipment.

3. English software, installation and related training instructions and videos are available for end-users.

4. With our customer-orientated service support, maintenance and repair costs will be kept low.

5. We supply 1 year warranty and life-Long engineering service.
