When to Use Full Birch Flat Die Board

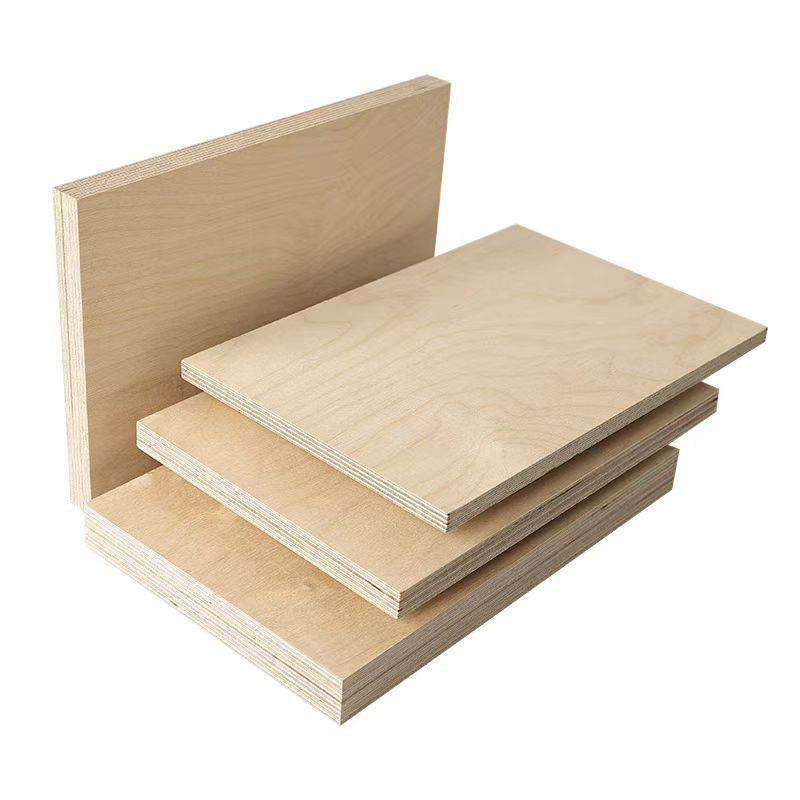

1. What Is a Full Birch Flat Die Board

A Full Birch Flat Die Board is manufactured using 100% birch veneers throughout all layers, without mixing poplar or other softwood cores.

Compared with poplar or mixed boards, it provides the structural consistency required in professional die-making production.

Key Characteristics:

• Uniform grain structure and high density

• Excellent hardness and compression strength

• Superior dimensional stability (resistant to warping and deformation)

• Clean laser cutting surface with minimal carbonization

For die factories focusing on precision and long-term performance, full birch is considered a premium-grade die board material.

2. When to Choose Full Birch Die Boards

(1) For High-Precision Die Cutting

When producing folding cartons, electronic insulation parts, medical packaging, or other tight-tolerance products, die accuracy must remain stable from the first sheet to the last.

Full birch boards provide:

• Lower expansion and shrinkage

• Stable rule height consistency

• Better registration accuracy

This ensures reliable cutting precision during continuous production.

(2) For Complicated or High-Strength Dies

For dies with:

• Multiple rule layers

• Complex bridge structures

• Dense rubber layouts

• Heavy pressure requirements

Full birch offers stronger nail-holding power and internal bonding strength, reducing the risk of:

• Board cracking

• Rule loosening

• Structural fatigue over time

This is especially important for large-format or high-tonnage applications.

(3) For Long-Run or Repetitive Production

In mass production environments where dies are used repeatedly over long cycles, board stability directly affects lifespan.

Full birch die boards:

• Maintain flatness under pressure

• Resist humidity impact

• Provide consistent dimensional repeatability

This reduces downtime, rework, and die replacement frequency.

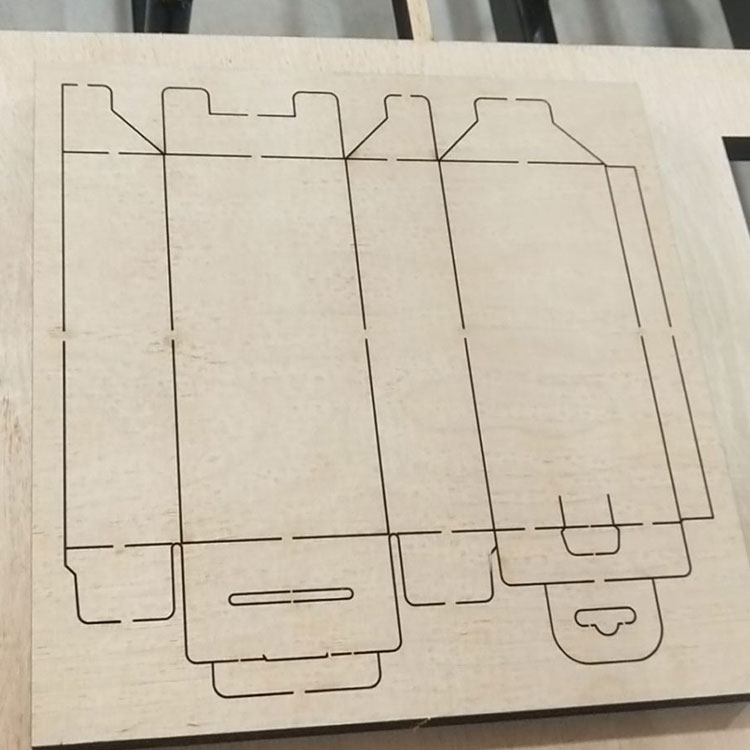

(4) For High-Precision Laser Cutting

On automatic laser die board cutting machines, material density uniformity directly influences cutting quality.

Full birch ensures:

• Consistent laser penetration depth

• Smooth slot walls

• Minimal burn marks

• Faster and more stable cutting performance

This makes it highly suitable for automated die-making lines and high-efficiency workshops.

(5) For Humid or Coastal Production Environments

In regions with high humidity or significant temperature variation (such as Southeast Asia or South America), poplar-based boards may expand, deform, or weaken over time.

Full birch performs better due to:

• Higher density

• Stronger internal bonding

• Better moisture resistance

It provides improved structural stability in challenging environments.

3. When Full Birch May Not Be Necessary

If the die is intended for:

• Short-term use

• Sample production

• Low-precision packaging

• Small batch orders

A Poplar-Birch Mixed Board can offer a more economical solution while still meeting basic production requirements.

Selecting material according to actual application needs helps balance cost and performance.

4. Summary

Conclusion

For die-making factories where precision, durability, and repeatability are critical, Full Birch Flat Die Boards provide a stable and reliable foundation.

With excellent laser-cutting performance, strong mechanical structure, and long-term dimensional stability, full birch boards help reduce production risks and improve overall die quality.

Choose the right board according to your production requirements — and let material quality support consistent die performance.
