PRODUCT FEATURES

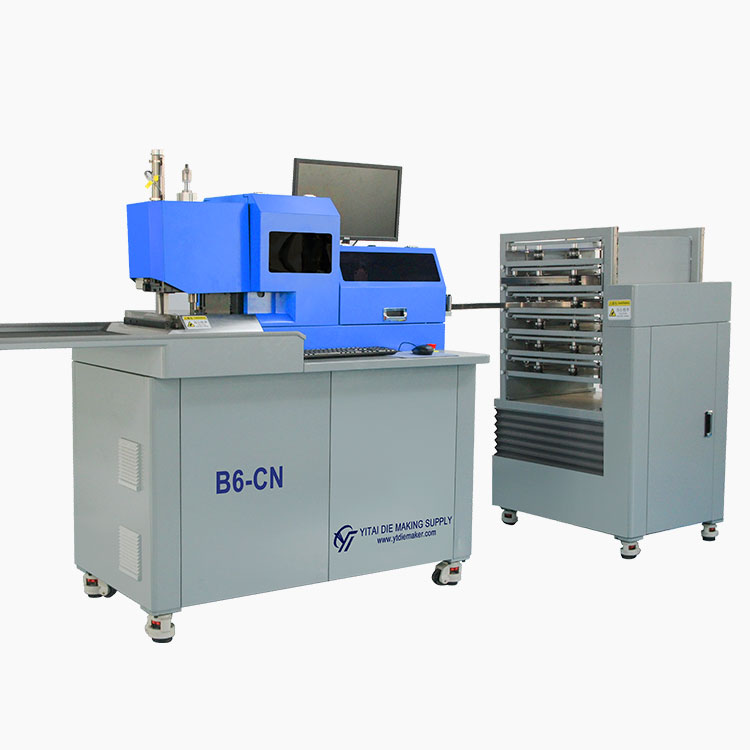

The YITAI B6-CN CNC Auto Blade Bender Machine is a new-generation solution tailored for high-rule flat die making.
It integrates cutting, bending, lipping, bridge forming, perforation, and nicking within one automated CNC system — delivering power, stability, and accuracy to professional die makers and packaging manufacturers.
Steel Rule Height: 20–60mm
Steel Rule Thickness: 0.45–1.07mm
Suitable for corrugated carton dies, foam cutting dies, plastic & printing packaging dies
Designed for industries demanding strong die structure, deep cutting, and large-format die board processing.
Remark：Straight Cut, Perforation and Hole are optional functions
| Advantage | Benefit to Factory |
|---|---|
| Multi-function forming | Auto punching + lipping + cutting + perforation = Higher productivity |
| Patented dual-screw feeding | Stable bending precision even at 60mm rule height |
| Precision broaching & nicking | Optional tungsten nicking blade (0.2–1mm) for long lifespan |
| Servo motion control | Smooth, quiet, low-energy consumption |
| Quick maintenance | Fast blade replacement, low downtime |
| Compact automation | Replaces manual bending with 4–6× efficiency |
Designed for heavy-duty die making
Consistent accuracy on complex die shapes
| Specification | Details |
|---|---|
| Bending Blade Thickness | 0.45mm / 0.71mm / 1.07mm |
| Bending Blade Height | 20–60mm |
| Bridge Width | ≥3mm (custom sizes available) |
| Bridge Height | 10–20mm |
| Nick Depth Range | 0.2–1mm |
| Air Supply | 1CFM at 6 bars |
| Power Supply | Single Phase 220V, 3KW, 50/60Hz |
| Gross Weight | 420KGS |
| Dimensions (L×W×H) | 2800×800×1800mm |
| Package | Industrial export wooden case |

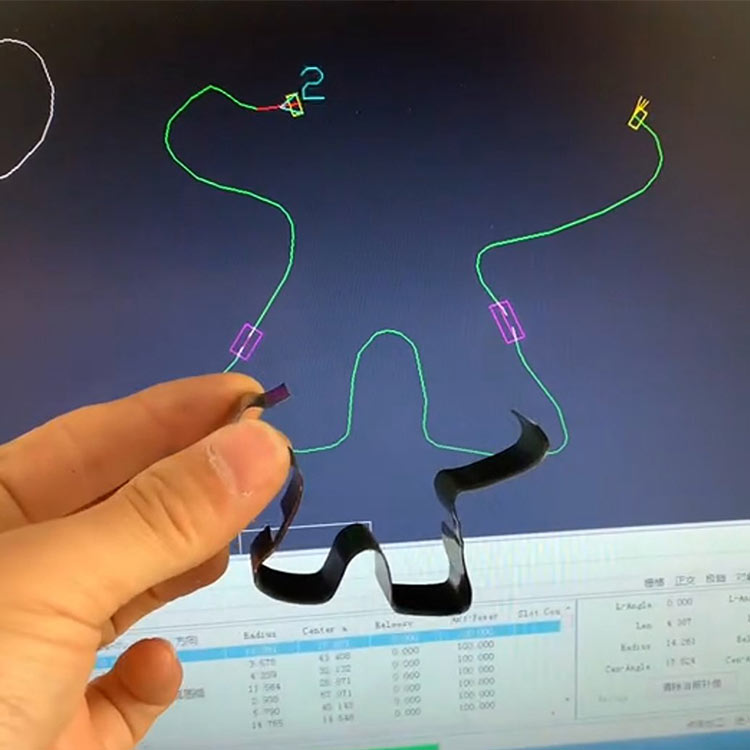

Automatic bending for rules as short as 2mm
Auto lipping, bridge forming, and once-cutting for smooth joints
Dual-screw feeding and coil auto-feed system for stable and fast material handling
Broaching and nicking with adjustable depth and high precision

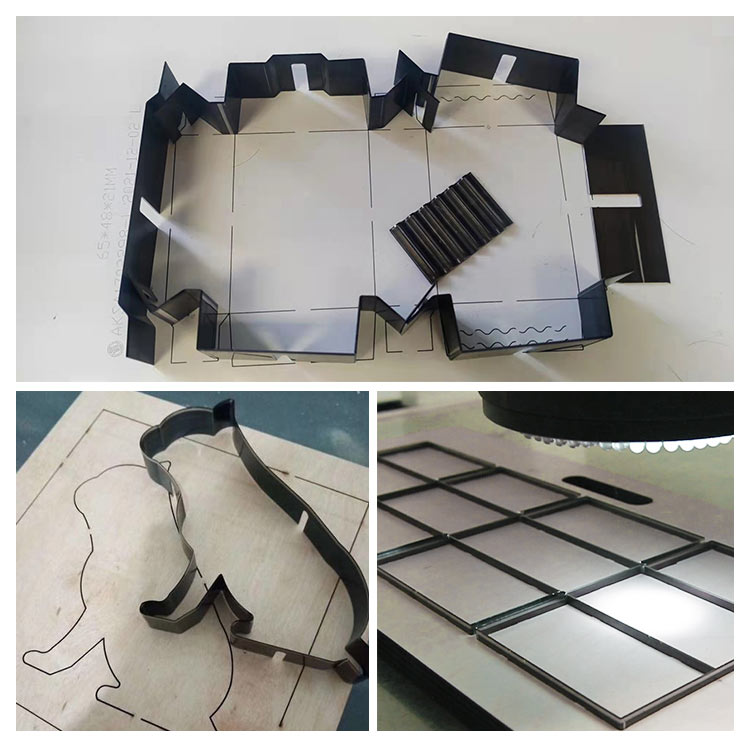

Perfect for
Corrugated packaging large cutting dies
Knife molds for thick or laminated materials
Industrial-grade die tools for high-speed presses
Supports 60mm steel rule — advanced capability
Reduced operator skill requirement
Lifetime engineering support
One-stop die making solution provider
Auto Bender Machines + Die Board Laser + Sample Cutters + Die Making Consumables
YITAI helps global die makers reduce cost, increase speed, and boost quality.
| Support Item | Details |
|---|---|
| Training & Installation | English-speaking engineer available |
| Operating Software | English UI + setup videos |
| Warranty | 1-Year + Lifetime technical support |
| Maintenance | Easy-access design → lower repair costs |
| Global Service | Fast spare parts shipment |
Tell us your:
1. Rule height & thickness used
2. Type of packaging/die products
3. End user or distributor business type
Send an inquiry right now, our sales will reply with the price within 12 hours.
