PRODUCT FEATURES
It greatly improves rule bending automation with low energy consumption, high accuracy, fast speed, and easy operation—making it the ideal replacement for manual steel rule bending and notching work.
Steel Rule Thickness: 0.45mm / 0.71mm / 1.07mm
Steel Rule Height: 7mm – 32mm
Applicable for corrugated box cutting dies, printing die boards, and other steel rule die cutting needs.
Remark：Broaching, Straight Cut, Perforation and Hole are optional functions
| Advantage | Description |
|---|---|
| Multi-functional Cutting & Punching | Integrates straight cut, lipping, perforation, broaching, bridge cutting in one system |
| Patented Double-Screw Feeding System | High-speed feeding with ±0.05mm precision, no height mold change for 7–32mm |
| Easy Broaching System | Top-mounted broaching for fast blade replacement + great chip removal |
| Full Servo Motion System | Ensures stable and accurate blade forming with lower maintenance |
| Optional Tungsten Nicking Blade | 0.18–1mm adjustable nicking, long lifespan, stable performance |
| Quick Spare Parts Replacement | Save downtime during die production |
Supports automation for short-run to mass-production steel rule dies

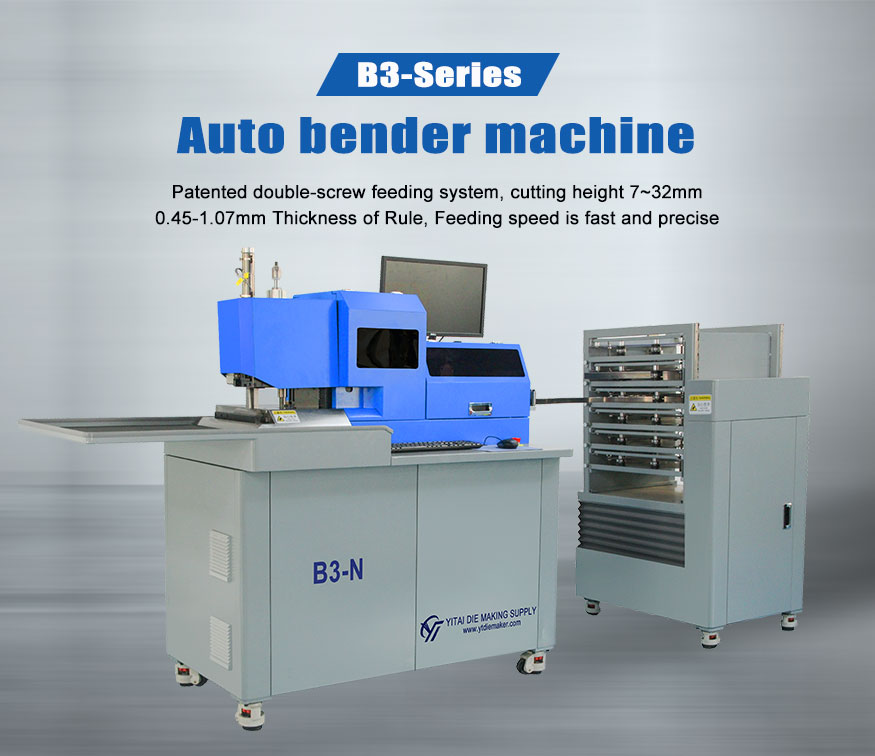

| Model | B3-N Steel Rule Auto Bender |
|---|---|
| Rule Thickness | 0.45 / 0.71 / 1.07mm |
| Rule Height | 7–32mm |
| Bridge Width | ≥ 3mm (Custom available) |
| Bridge Height | 10–20mm |
| Nick Depth | 0.2–1mm |
| Min. Bend Length | 2mm |
| Feeding Structure | Dual-screw servo feeding |
| Coil Auto-Feed | 6 sets |
| Power Supply | 220V Single Phase, 3KW, 50/60Hz |
| Air Supply | 1CFM @ 6 Bars |
| Machine Weight | 420kg |
| Dimensions | 2800 × 800 × 1500mm |
| Packaging | Export standard wooden case |

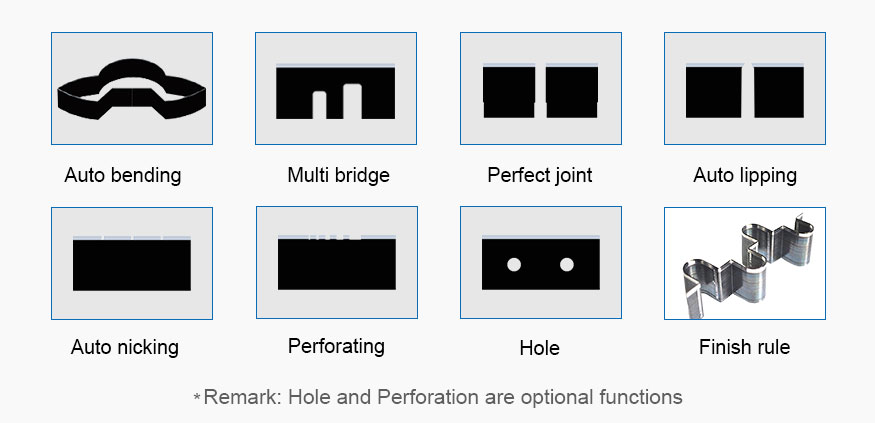

| Function | Usage |
|---|---|
| Auto bending | Flat die steel rule forming |
| Seamless joint | Improve cutting quality & durability |
| Auto lipping | Consistent & fast die-edge forming |
| Auto broaching | Punching holes with precision |
| Auto bridge | Strong die structure, 10–20mm adjustable |
| Nicking (Optional Tungsten blade) | 0.2–1mm nick control |
| Die punching | Flexible custom punching shape |
Suitable Fields:
Steel rule die making factory
Packaging & corrugated box manufacturing
Printing and die-cutting equipment suppliers
Label die industry & precision cutting shops
40+ years die-making industry experience
One-stop supply for Auto Bender + Consumables + Laser Cutter
Local service in multiple countries
Support English software and training
1-Year Warranty + Lifetime Engineering Support
Fast spare-parts delivery worldwide
To recommend the best configuration, please let us know:
1. Which size & type of steel rule do you use?
2. What products do you produce? (Carton / Printing Dies / Labels)
3. Are you an end-user, distributor, or OEM partner?
➡ Inquiry Methods: WhatsApp / Email / Phone
Our expert technical team will reply within 1–12 hours.
