PRODUCT FEATURES

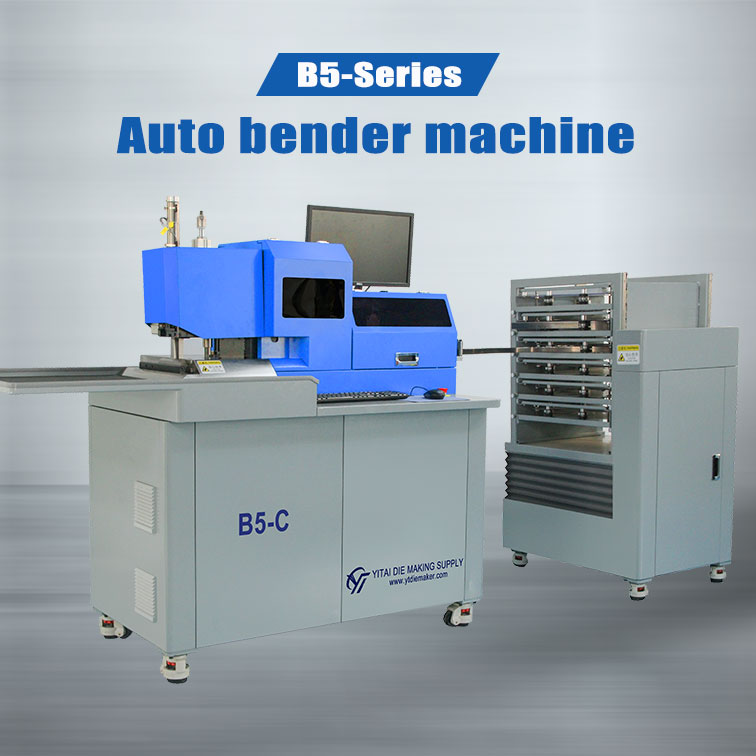

The YITAI B5-C CNC Auto Bender Machine is engineered for high-precision flat die making and professional steel rule die fabrication.
With a powerful CNC control system and patented dual-screw feeding, the B5-C ensures accurate bending, lipping, punching, broaching, and nicking for 2pt / 3pt / 4pt steel rule dies used in corrugated packaging, printing, and cutting dies.
1. Steel Rule Height: 23–52mm
2. Steel Rule Thickness: 0.45–1.42mm
3. Designed for complex die structures & heavy-duty industrial die making
Perfect for die makers, packaging factories, and steel rule equipment distributors.
Remark：Nicking, Broaching, Perforation and Hole are optional functions
| Feature | Benefit to Die Maker |
|---|---|
| CNC Multi-function forming system | Punching + Cutting + Lipping + Bridge Cutting in one machine |
| High-speed patented dual-screw feeding | Fast rule feeding with ±0.05 mm accuracy |
| Adjustable rule height 23–52mm | Support large die boards and heavy rules |
| Servo motion control | Stable bending performance, low maintenance |
| Optional Tungsten Nicking Blade | 0.18–1mm precision nicking, long-service life |
| Coil auto-feed with 6 sets | Full automation, reduced labor |
Ideal for large-format dies, electronics packaging, corrugated carton converters
Replace manual bending to increase 4–6X productivity
| Item | B5-C Technical Data |
|---|---|
| Rule Thickness | 0.45–1.42mm |
| Rule Height | 23–52mm |
| Min. Bending Length | 2mm |
| Bridge Width | ≥3mm (Customized available) |
| Bridge Height | 10–20mm |
| Feeding System | Double lead-screw servo feeding |
| Functions | Bending, punching, lipping, seamless joint |
| Air Supply | 1CFM @ 6 Bars |
| Power | 220V Single Phase, 3KW, 50/60Hz |
| Weight | 500kg |
| Dimensions | 2500 × 800 × 1800mm |
| Packing | Export wooden case |
| Processing Function | Application Benefit |
|---|---|
| Auto Bending | Fast die shape forming |
| Seamless Joining | Strong joint, smooth cutting edges |
| Auto Lipping | Consistent die locking |
| Punching & Broaching | Perfect hole forming |
| Dual-Screw Feeding | Accurate rule positioning |
| Once-Cutting for 20–52mm Height | High efficiency for large blade dies |
Suitable for industries:
Steel Rule Die Making Factory
Corrugated Carton Box Producers
Printing & Packaging Die Cutting Suppliers
Industrial Blade Processing Shops
Seamless joining for clean die edges
Automatic lipping and punching
Dual-screw feeding with coil auto-feed
Once cutting for efficiency
Suitable for die rule thickness 2pt, 3pt, and 4pt
YITAI provides:
English-speaking installation and training engineers
One-stop die making supply with full tool and machine line
English operating software and training videos
1-year warranty and lifelong technical service
Cost-effective maintenance and customer-oriented support
Looking for a CNC Steel Rule Bending Machine that combines precision, efficiency, and easy operation?
To match the right bending machine for your factory, please provide:
✔ Steel rule type and size used
✔ Cutting material & production volume
✔ End-user or distributor business type
Contact YITAI Die Making Supply — your reliable manufacturer for Auto Die Blade Bender and Flat Die Bending Machines.
Our expert team will help you choose the right Precision Rule Bender to make your production more efficient and accurate.
Send an inquiry right now, our sales will reply with the price within 12 hours.
