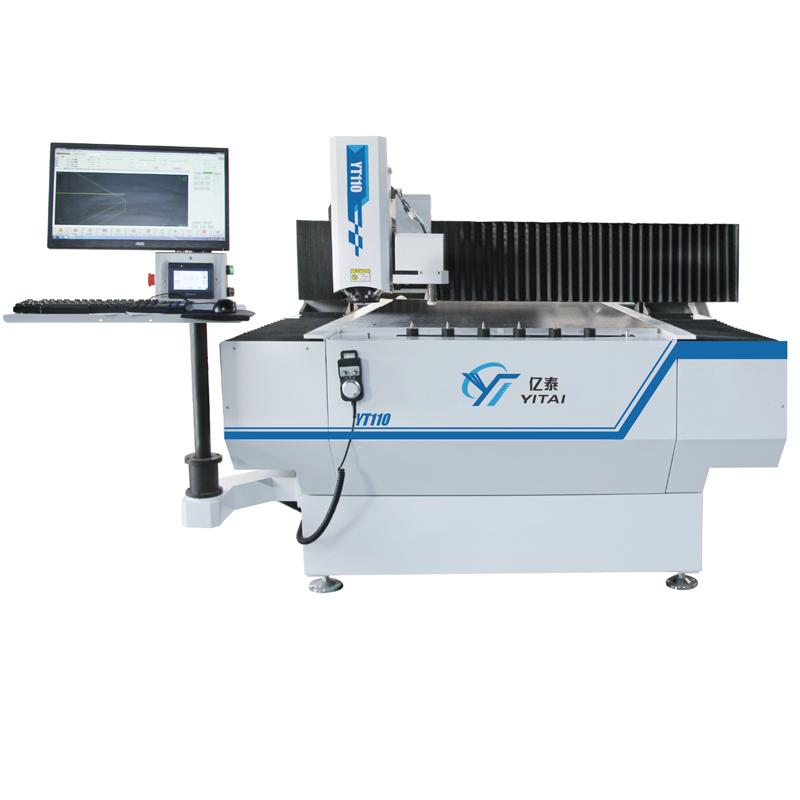

Pertinax Milling Machine YT110


YT110 High speed, high-precision pertinax milling machine

YT110 pertinax Milling machine is mainly for cutting the PERTINAX in Sandwich die industry,and can also be used to cut sponges and wood boards.In addition to having the functions of a conventional pertinax milling machine,it also replaces the functions of water jet cutting machine and laser machine to a certain extent.Besides,the machine can also mill the edges of stripping die.

Pertinax Milling Machine YT110

Pertinax Milling Machine YT110

Pertinax Milling Machine YT110

Features and Functions

  1. Efficient cutting speed,no-load speed can reach 10m/min

  2. The screw rod is made by grinding process,the accuracy can reach 0.03mm,C5 level

  3. High flatness of the table top(can be tested by a flatness detector)

  4. The spindle speed can reach 60000 rpm,2.5KW power,stable,durable and fast

  5. 6 sets of auto cutter exchanger to finish production one time

Pertinax Milling Machine YT110

Pertinax Milling Machine YT110

Overall Dimensions

Length:1600mm Width:1800mm Height:1400mm

Machine Parameters

Model No.YT110
X-axis travel-length1100mm
Y-axis travel-length1080mm
Z-axis travel-length90mm
No-load speed10m/min
Cutting Precision0.02mm
Rotational speed60000RPM
Re-Positioning Precision0.01mm
Cutting thicknessFlat plywood 18mm,PVC 6mm,Sponge 7mm
Spindle Tolerance<0.003mm
Power380V/6KW(three-phase supply)
Overall dimensions(L*W*H)1600*1800*1400mm
