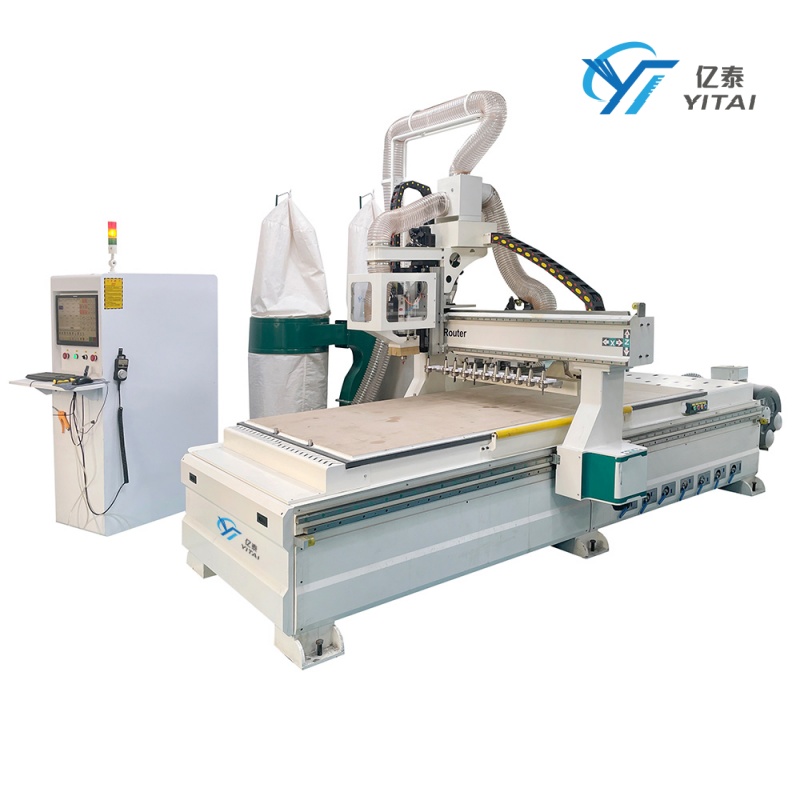

CNC Router


Machine Parameters

Model No.HS1290
X-axis travel-length1200mm
Y-axis travel-length900mm
Z-axis travel-length150mm
Moving speed13m/min
Positioning precision0.01mm
Re-positioning precision0.005mm
Max weight of table load300kg
Resolving power0.001
Power380V/8KW(three-phase supply)
Overall dimensions(L*W*H)2300*2200*1600mm


CNC sandwich die routing machine is professional for cigarette case, pill box. Marble and aluminum vacuum cutting table ensure that the machine long-term accuracy and mechanical

Features and Functions

High cutting speed, no-loading speed reaches 15m/min

Marble working table make sure the stability

Re-positioning precision is 0.005mm

Use standard G code

Auto knife changer can finish the production at one time


Send an inquiry right now, our sales will reply with the price within 12 hours.
