Working Principle

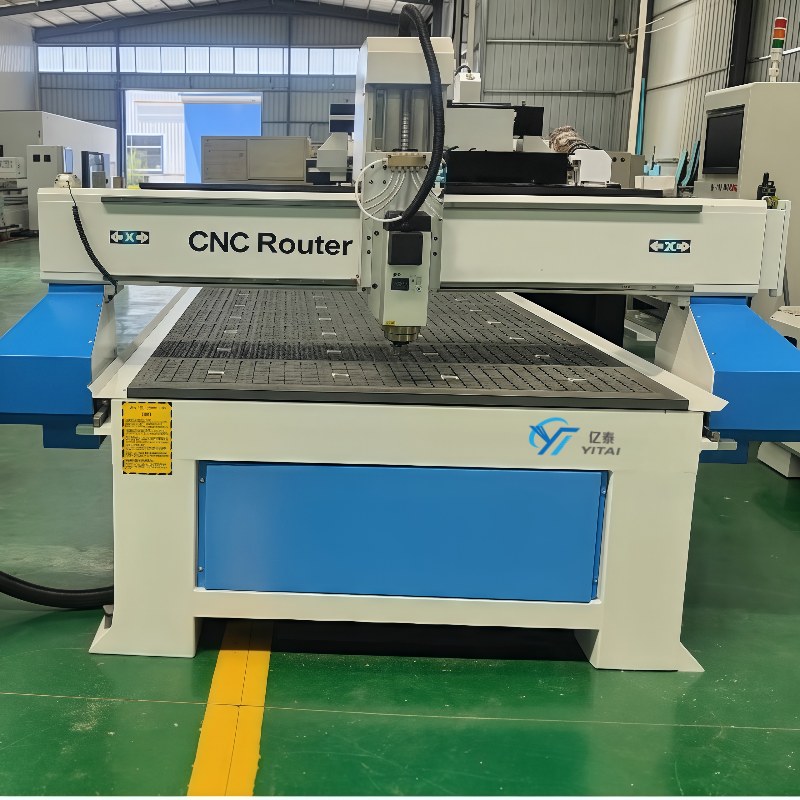

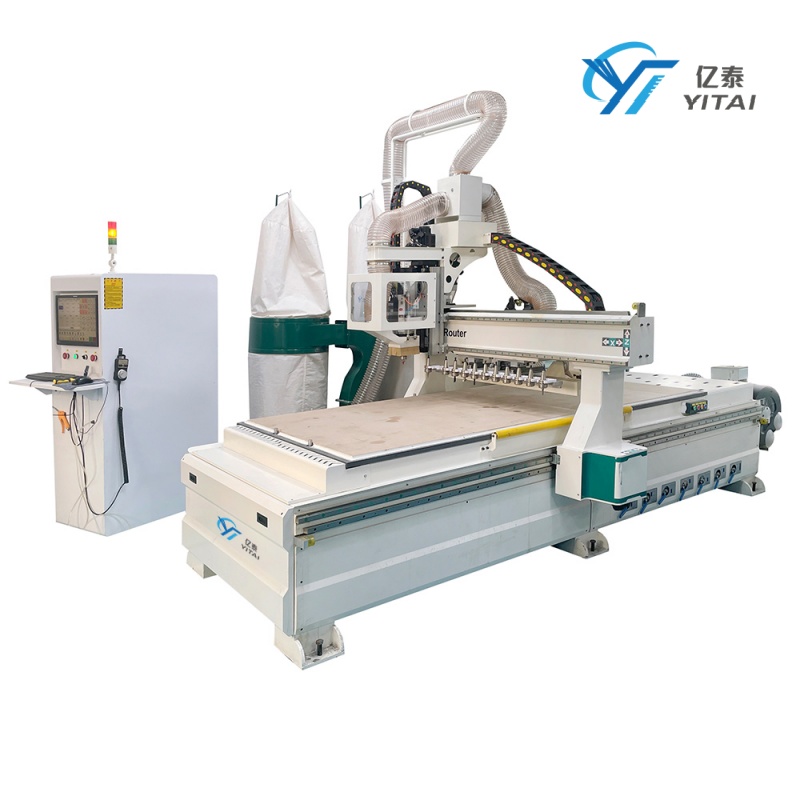

Automatic Tool Change CNC Router Machine, Model: TA-1325-T12, The machine operates based on computer-programmed tool paths. Instructions are loaded via USB into the control system, which converts them into signals to guide mechanical movements. During operation, tools from the straight-line tool magazine are automatically changed according to the program. The high-speed spindle motor drives the tool to perform tasks such as cutting, drilling, grooving, etc., on materials secured by a vacuum adsorption table. This system ensures the material remains in position throughout the process, delivering high cutting accuracy.

1. Application Scope

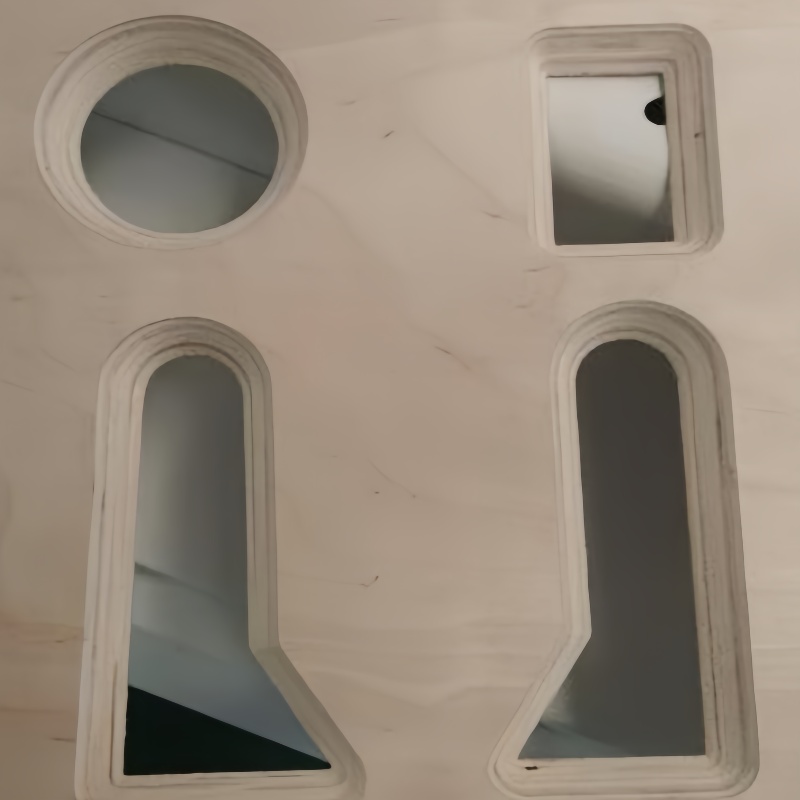

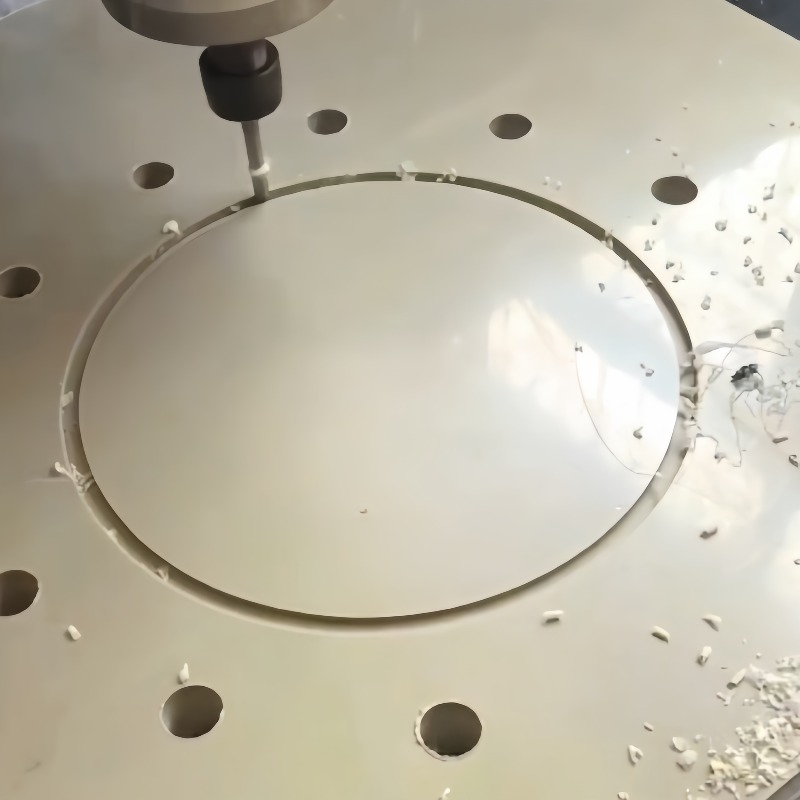

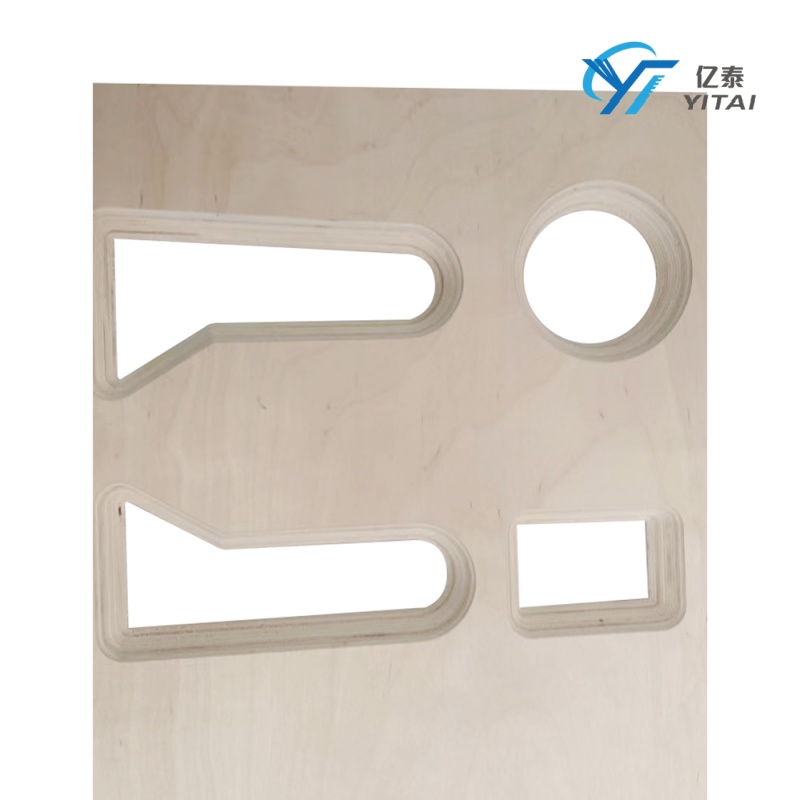

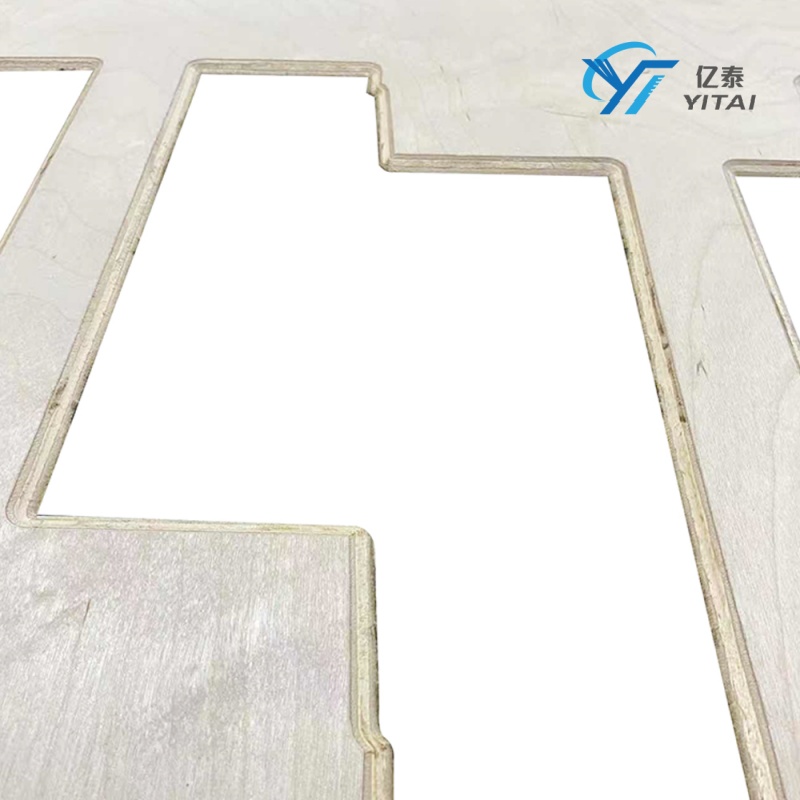

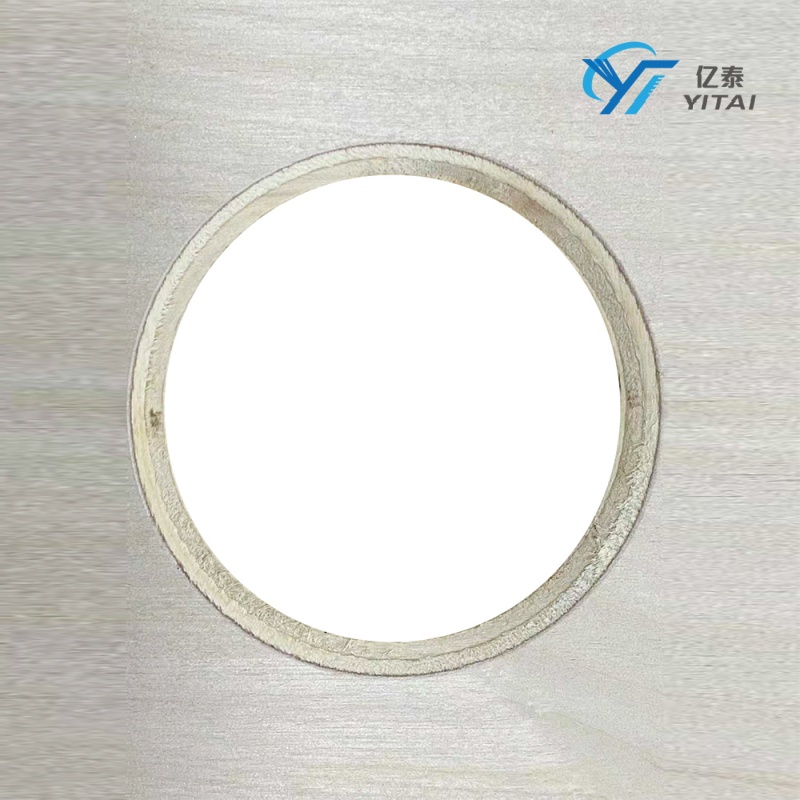

This CNC router is a multifunctional machine that integrates cutting, slotting, drilling, engraving, and more.
It is widely used for processing:

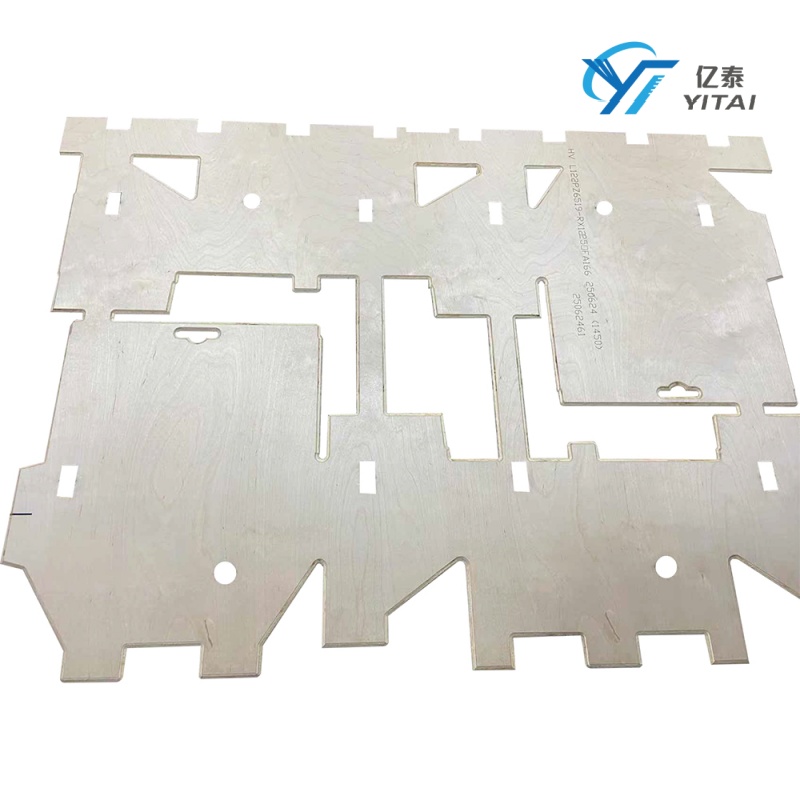

• Plywood, multilayer board, PP sheet, carbon fiber board, epoxy board

• EPS, EVA, acrylic, KT board, MDF, solid wood, insulation materials, composite panels




Worktable Size: 1300mm × 2500mm
Cutting Precision: ±0.2mm
Cutting Thickness: 1–400mm
Minimum Grooving Width: 2.0mm
Tool Magazine: 12 tools (automatic change)

2. Technical Specifications

3. Our Service – Solving Real User Challenges

4. Key Highlights

Durability

• Side-mounted gantry assembly ensures smoother operation and higher cutting accuracy

• Fully welded heavy-duty base, stress-relieved and quenched

• 5-axis machining of mounting bases for precise installation

• Reinforced square gantry beam for rigidity and vibration resistance

Strong Vacuum Suction

• 7-zone vacuum table with multi-groove layout for diverse sheet sizes

• Water-cooled / frequency-controlled vacuum pump for consistent and reliable suction

Precision

• Original Hiwin linear rails and TBI ball screws from Taiwan

• Cutting accuracy: ±0.2mm | Repeatability: ±0.05mm

Speed & Stability

• Rapid movement speeds (Idle): X 80m/min, Y 100m/min, Z 15m/min

• Cutting speeds: X/Y 20m/min, Z 15m/min

• Equipped with premium servo motors for efficient and stable performance

Versatility

• Supports a wide range of operations: cutting, grooving, drilling, engraving, trimming, beveling, etc.

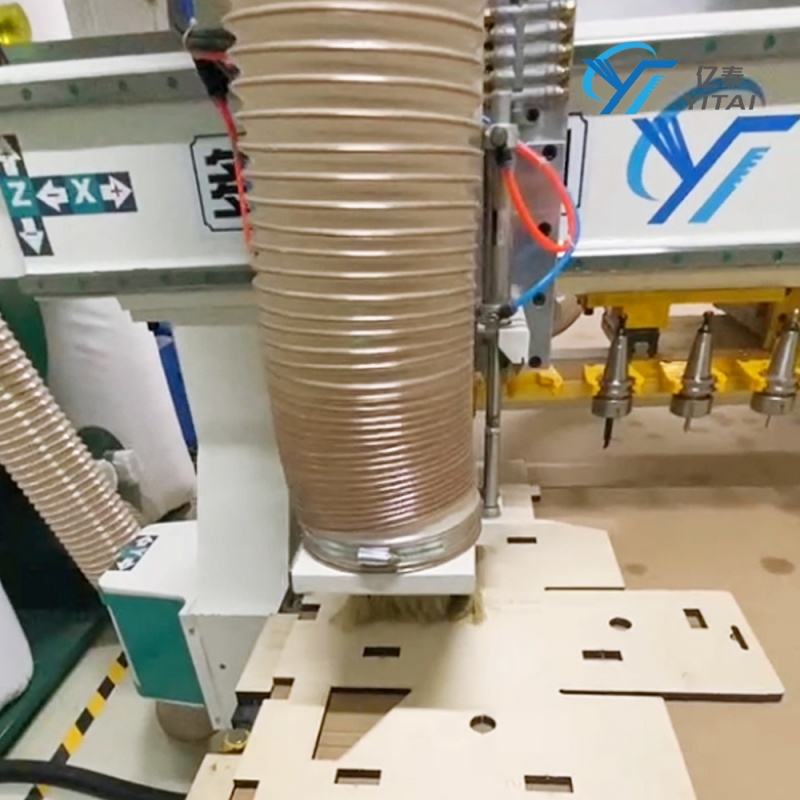

• 12-tool automatic changer for uninterrupted multi-process machining




Wide Material Compatibility

• Suitable for MDF, multilayer board, eco-board, acrylic, PVC, PTFE, resin board, ABS, and more

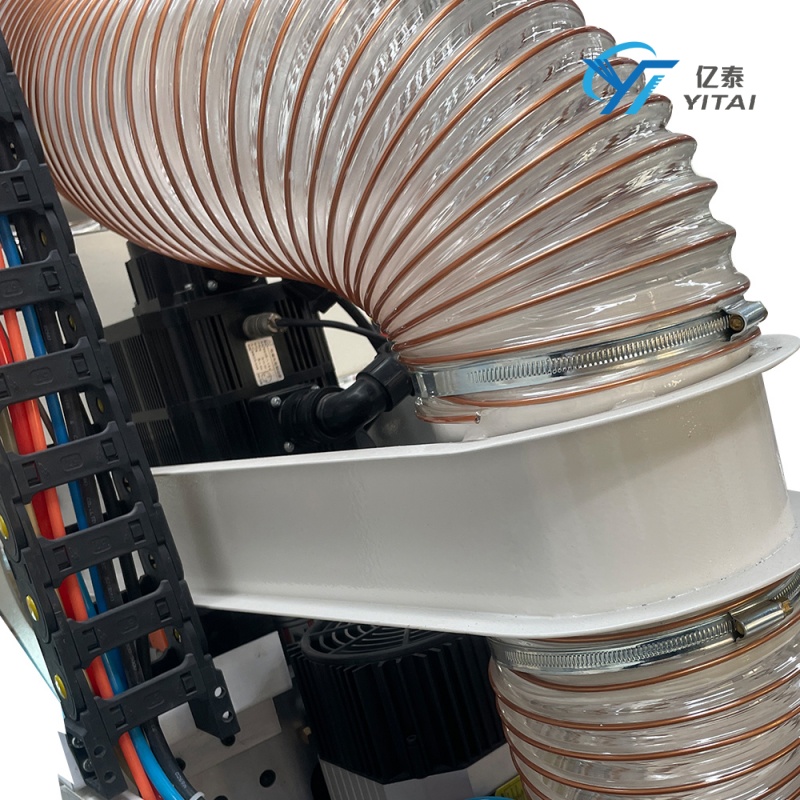

Built-in Dust Collection

• Integrated industrial-grade dust collector minimizes dust and supports eco-friendly production

5. Value Propositions

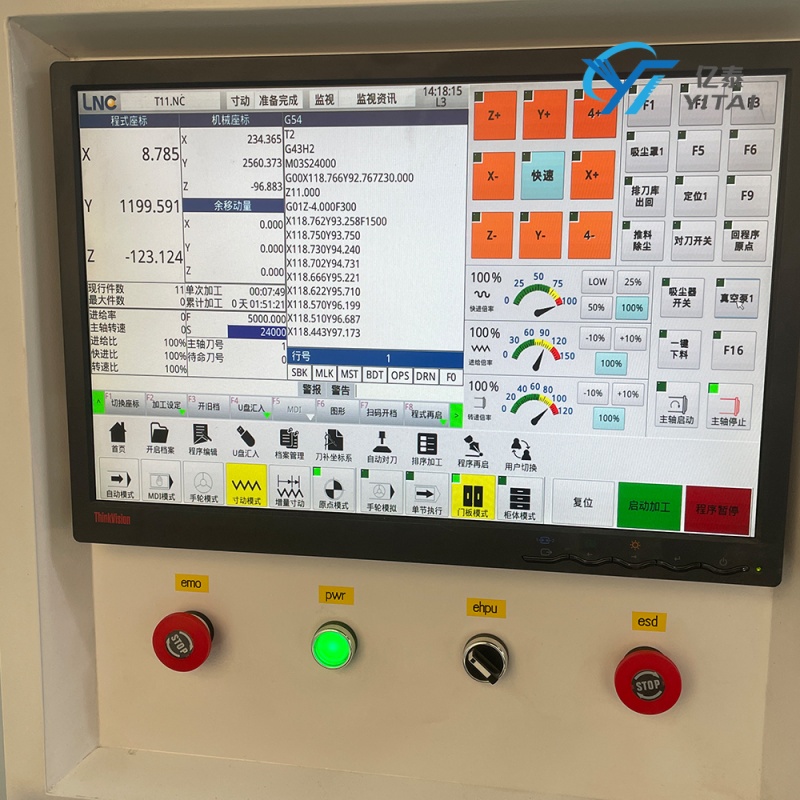

• Easy Operation: Direct USB file import, user-friendly control interface—ideal for all skill levels

• Smart Nesting: Reduces material waste with intelligent layout software

• Fast Tool Change: 12-tool inline ATC for seamless, efficient multi-process machining

• High Output Efficiency: 18,000 RPM high-speed spindle enables fast, smooth production

• Robust Build: CNC-machined heavy frame ensures long-term precision and durability

• High-Quality Components: Imported electronics, high-power spindle, full servo drive

• Strong Suction: Multi-zone vacuum table ensures firm grip on sheets during machining

• Optional Dual-Head Configuration: Enables small batch processing, reduces labor costs

6. Tool Selection Guide

Commonly used tool types include:

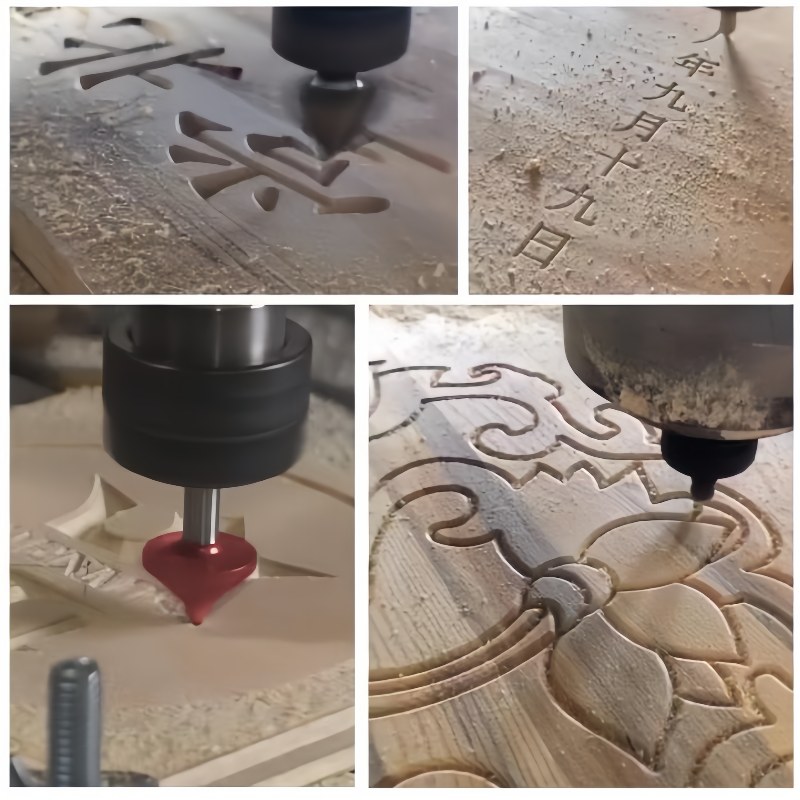

Flat-Bottom V-Bit

– Features a sharp tip with angled sides
– Ideal for fine engraving and relief carving

Straight Bits (Single/Double Flute)

– Available in spiral or straight edge formats
– Used for cutting, drilling, grooving, etc.
– Specify diameter only

Ball Nose Cutter

– Round-ended tip, perfect for 3D engraving, wave panels, and contouring

Important Tip:
Tool selection affects machining quality and efficiency. Using the wrong tool may lead to misaligned or poor-quality carvings. Please choose tools based on your specific application.

Typical tool parameters include:

• Shank diameter

• Cutting edge length

• Tip radius or angle

• Total tool length
