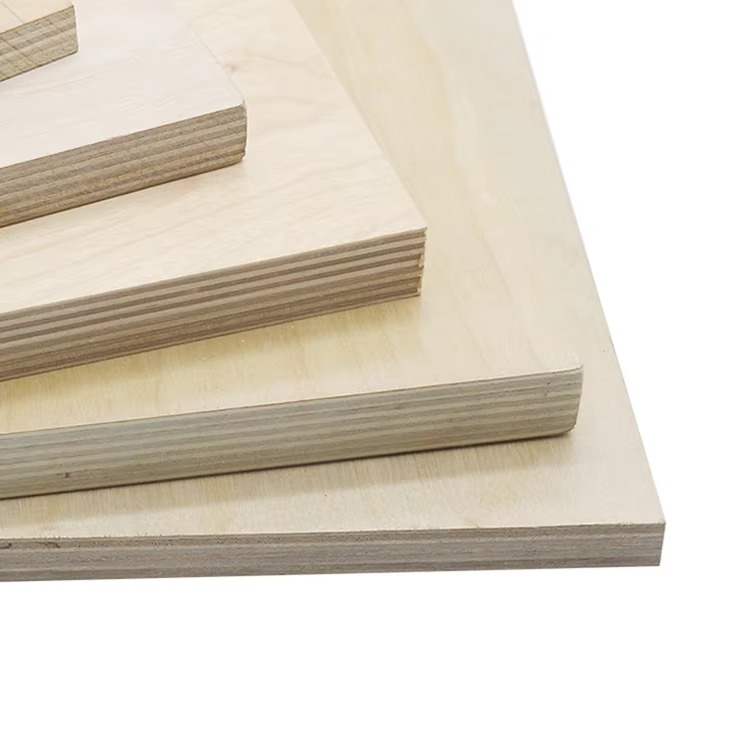

Our Full Birch Flat Die Plywood is specifically designed for high-precision, customizable die-making. Made entirely of birch veneers, this premium-grade plywood delivers outstanding dimensional stability, durability, and smooth laser cutting performance—making it the top choice for die makers seeking reliable and consistent results.
Material: 100% Full Birch (Birch Face + Birch Core)
Glue: E1 Phenolic Glue – strong bonding, low formaldehyde
Grade: BB/BB
Moisture Content: Controlled between 8%–12%
Thickness Options: 9 mm, 12 mm, 15 mm, 18 mm, 20 mm, 22 mm
Available Sizes:
• 1220 × 1220 mm
• 1220 × 1830 mm
• 1220 × 2440 mm
Thickness Tolerance: ±0.2 mm
Superior Flatness & Dimensional Accuracy
Prevents warping, bending, or twisting—essential for laser die cutting precision.
Clean Laser Cut Performance
Birch’s high density and low resin content ensure minimal burn marks and clean edges.
Layer-by-Layer Bonding
High-pressure lamination with premium glue prevents delamination, chipping, and cracking.
Excellent Fastening Strength
Provides strong nail and screw holding power—ideal for steel rule dies.
Customizable for Various Die Applications
Suitable for flat dies, packaging dies, label cutting, and complex die configurations.
Optional UV-Coated Surface
Enhances moisture resistance and improves board cleanliness and handling during storage.

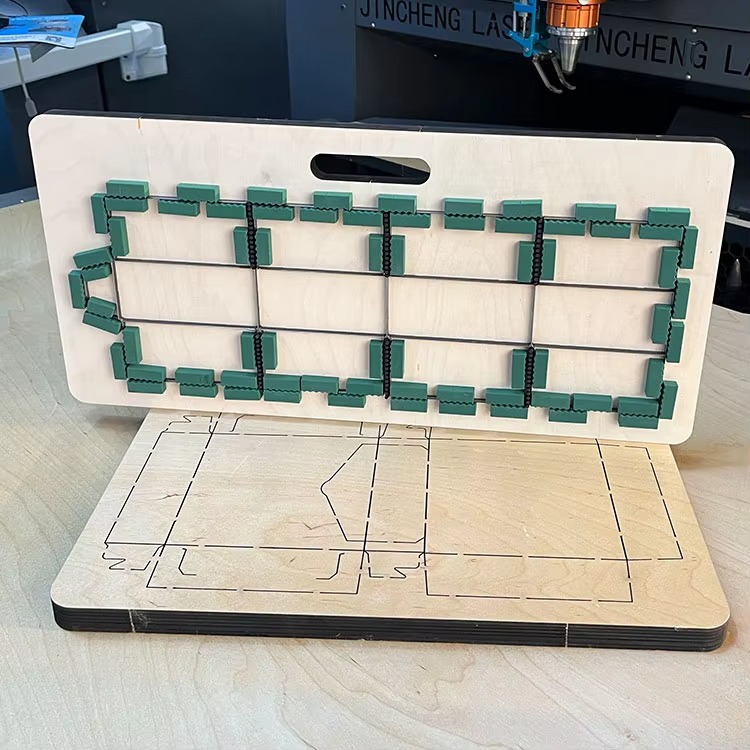

Laser Die Boards for Packaging
Rotary and Flatbed Die Cutting
Label and Sticker Die‑Making
Export‑Grade Die Production
Manufactured in‑house under strict quality control, every board is individually inspected to ensure superior performance. Get reliable, premium‑grade die boards—at a competitive price.
Send an inquiry right now, our sales will reply with the price within 12 hours.
