PRODUCT FEATURES

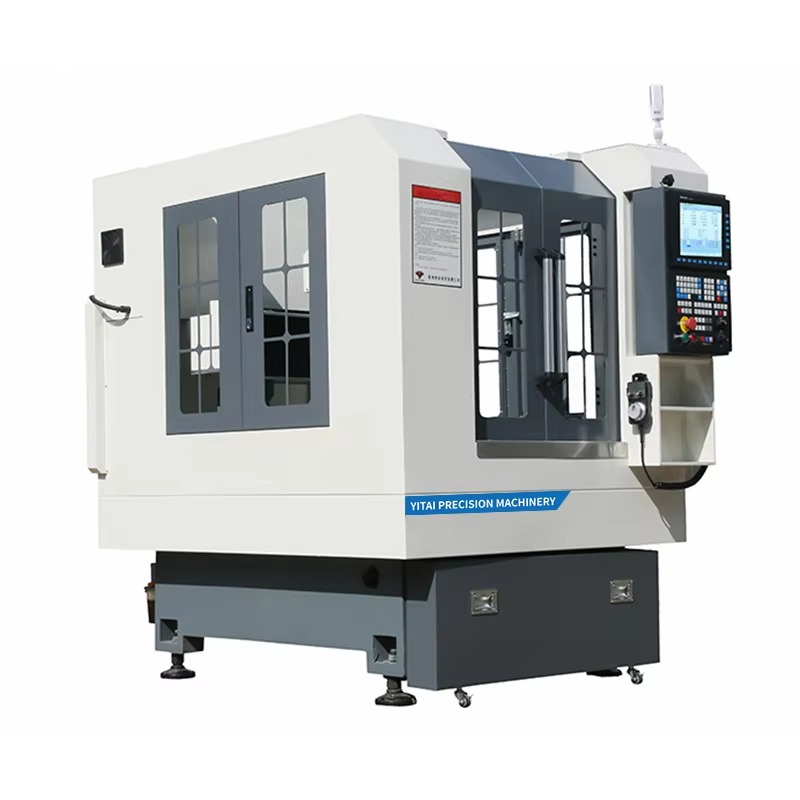

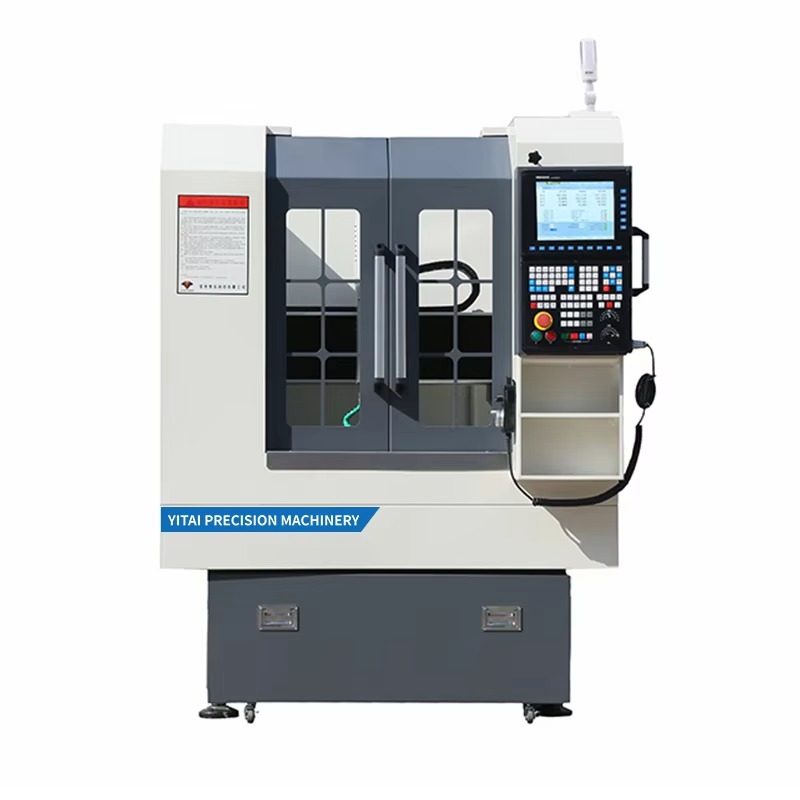

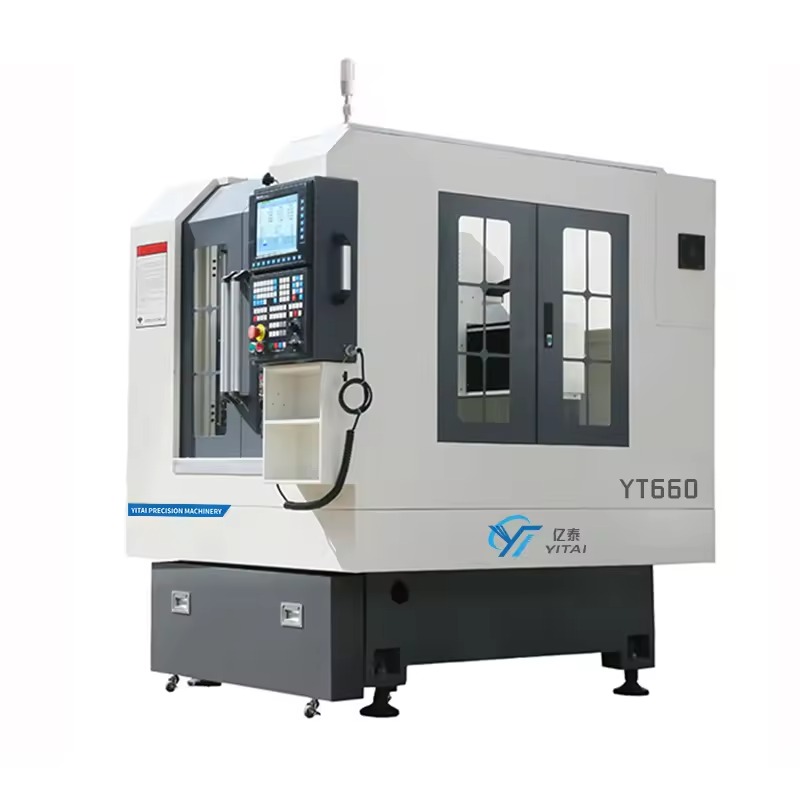

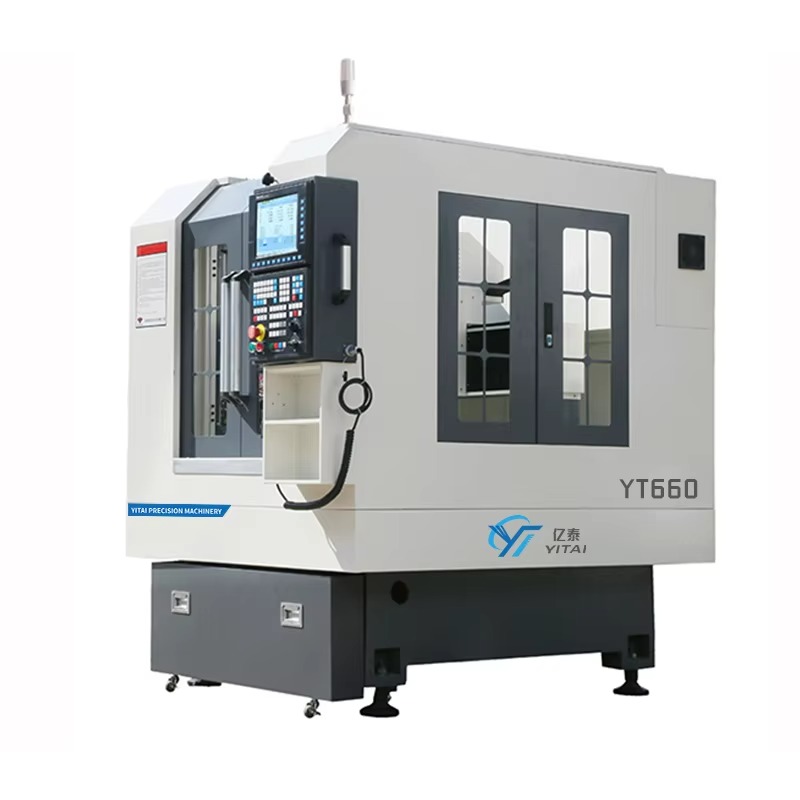

The YT-6060DK Hot Foil Stamping Die Engraving Machine is a high-precision CNC engraving and milling solution designed for hot stamping dies and fine mold processing. Featuring a rigid integrated gantry-column structure, automatic tool changer, and stable servo control system, it delivers excellent machining accuracy, surface finish, and production efficiency for professional die shops and mold makers.

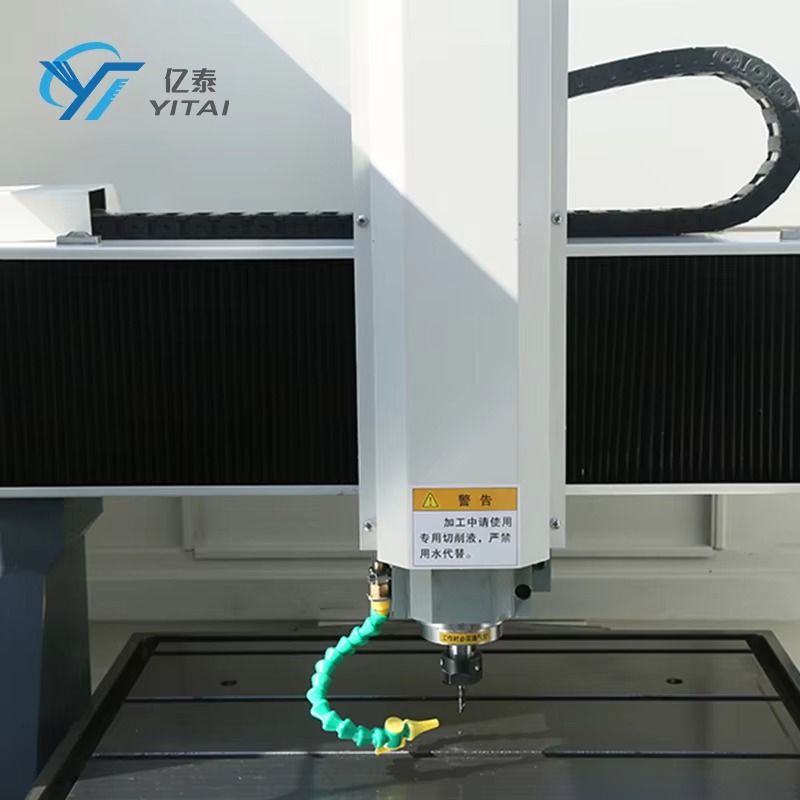

Integrated Gantry & Column Structure
One-piece beam and column design ensures outstanding rigidity and stability, ideal for high-hardness materials and mold core machining.
Automatic Tool Changer (ATC)
Equipped with a disc-type tool magazine, significantly improving productivity while reducing manual operation and setup time.

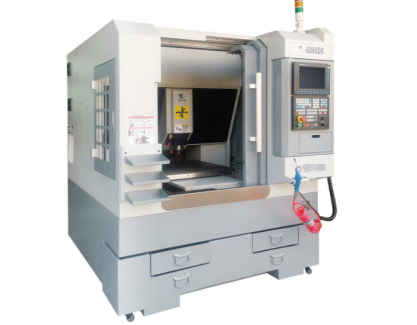

Front Chip Drawer Design
Fully enclosed sheet metal protection with a front chip collection drawer, offering enhanced safety and easy cleaning.
User-Friendly Operation
Includes MPG handwheel, tool setter, and smooth control system for precise and convenient operation.
The YT-6060DK is widely used in:

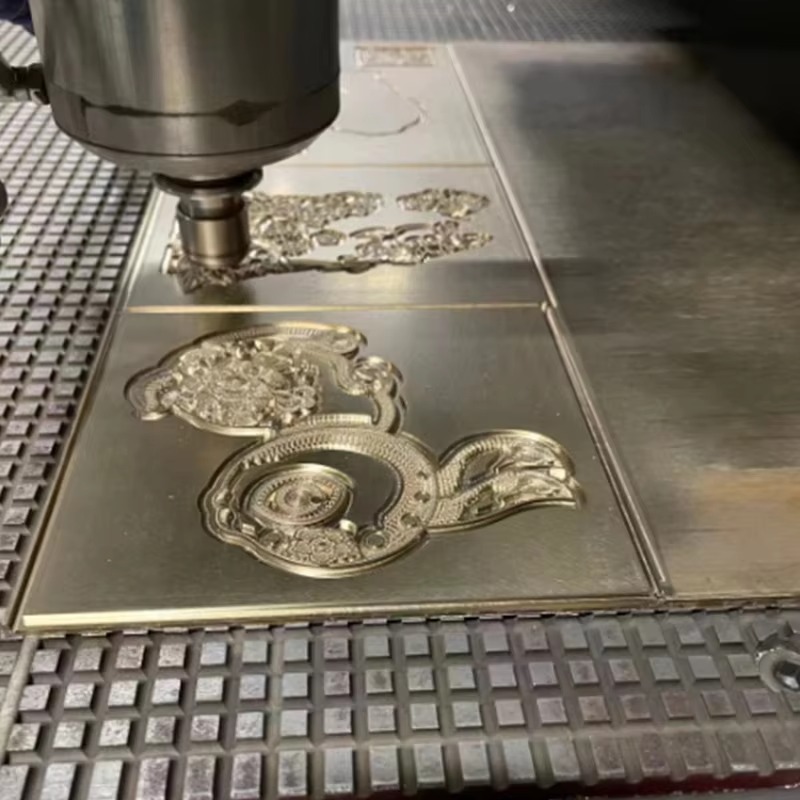

Hot foil stamping die engraving & milling
Prototype and first-sample mold making
Small and medium injection molds
Copper electrodes and aluminum alloy products
Non-metal materials machining
Trusted by well-known die makers, including professional die and mold factories in China’s major manufacturing hubs.
X-axis Travel: 600 mm
Y-axis Travel: 600 mm
Z-axis Travel: 120 mm
Table Size: 600 × 600 mm
Max Load: 200 kg
Spindle Type: ER20
Speed Range: 5,000 – 30,000 rpm
Motor Power: 2.2 kW
Drive Type: Electric Spindle
Cooling: Water-cooled
Rapid Speed (X/Y): 15 m/min
Rapid Speed (Z): 6 m/min
Guideways: Linear guides on all axes
Cutting Feed Rate: 1 – 6,000 mm/min
Servo Motors (X/Y/Z): 0.75 kW each
Positioning Accuracy: ±0.008 mm
Repeat Positioning Accuracy: ±0.005 mm
Overall Dimensions: 1800 × 1600 × 1900 mm
Machine Weight: Approx. 2000 kg
Water-cooled spindle system
Fully enclosed sheet metal housing
Cutting fluid system
Electrical control cabinet
Automatic power-off protection
Automatic lubrication system
Spindle air blow
Working light
Tool box
Operation manual & electrical diagrams
Precision tool setter
| Component | Brand / Model | Origin |
|---|---|---|
| Controller System | NK300 (Weihong) | China |
| Servo Motors | Weizhi | China |
| MPG Handwheel | Zhibo | China |
| Ball Screws (X/Y/Z) | HIWIN | Taiwan |
| Ball Screw Bearings | NSK | Japan |
| Electric Spindle | Huadiao | China |
| Inverter | Sifang | China |
Hot foil stamping die makers, knife die factories, packaging mold manufacturers, and precision engraving workshops seeking high rigidity, high accuracy, and stable long-term performance.
