PRODUCT FEATURES
YT46F-60 laser tube cutting machine is mainly for cutting various die board in color print industry, electronic products, and other light industry, sheet metal industry such as carbon steel, sheet, stainless steel sheet, aluminum alloy sheet; acrylic material, plastic material, and another non-metal sheet.
With stable body structure design, flexible working function, professional CNC control system, the cutting efficiency and quality has more advantages over traditional cutting method. This machine satisfies the die making factory, carton factory and other package& printing factory who need to make flat dies.
Machine Parameters
Model No. | YT46F | |
Power | 400W 600 W | |
The table style | Gantry construction with fixed cutting head | |
Laser source | laser tube | |
X-axis travel-length | 1200mm | |
1800mm | ||
Cutting speed | 18 mm die board | 2mm stainless steel |
40-50m/H | 60m/H | |
Re-Positioning Precision | ≤0.02mm | |
Cutting width kerf | 0.45mm, 0.71mm, 1.05mm, 1.07mm | |
Transmission system | Ball screw & Linear guide (TAIWAN) | |
Driving system | Japanese technology | |
Optical system | US program | |
Overall dimensions (L*W*H) | 4600*2300*1800mm | |
Gross Weight | 2000kg | |
Laser cutting thickness | 1-25mm(plywood, acrylic board, rubber, pvc board, leather, MDF board) | |
Metal cutting thickness | Carbon steel/Iron steel: 4mm | |
Stainless steel :2 mm |
Consumption:
Total rated Power | Electricity consumption | 400W laser tube |
5KW | 5degree/H | 3000 r/set |
Gantry-style frame with a fixed laser head ensures stable operation and saves floor space, ideal for factory use.
Equipped with a 600W water-cooled sealed CO₂ laser tube and a high-precision CNC motion system, this machine delivers accurate results while significantly reducing production costs. Perfect for wooden and electronic cutting die production.
Designed with a fixed optical path to eliminate beam deviation, ensuring consistent cutting quality even at high power.
Innovative smoke exhaust system creates a cleaner work environment. No auxiliary gas needed, and only 220V power supply is required — making operation low-cost and user-friendly with fast startup and smooth running.
Capable of one-pass cutting of 15–23mm plywood, PVC boards, and acrylic. Supports cutting line widths of 0.45mm, 0.71mm, and 1.05mm.

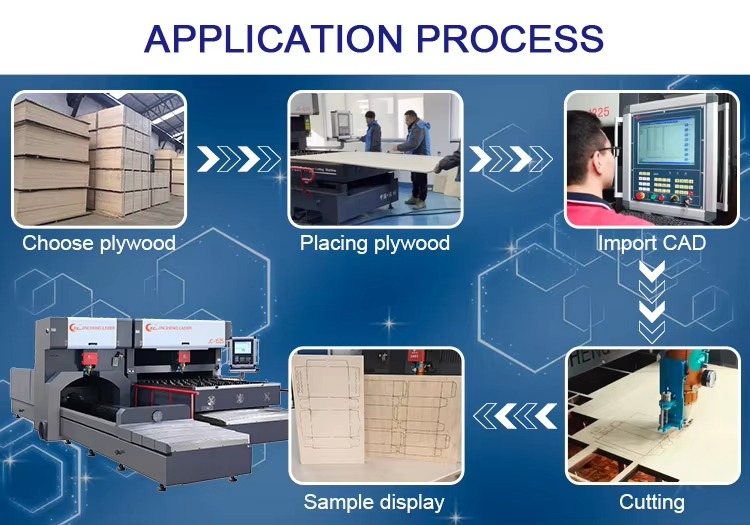

Supports editing from popular design software like AutoCAD, CorelDraw, and Adobe Photoshop. The cutting path is easy to adjust, making operation simple and efficient.
Uses high-performance optical lenses imported from II-VI Inc. (USA) for stable and powerful laser output.
All optical components are assembled in a 100% clean room environment, ensuring maximum precision and reliability.
Produced by a manufacturer certified under ISO9002 quality system, the only certified CO₂ laser tube manufacturer in its category.
Certificate & Accuracy Report:
(Moving accuracy testing by laser meter, Tolerance is 0.02mm)
>>> Our Services
1. English-speaking engineer is available for installation and training.
2. One-stop die making supply,meets every diemaker’s and diecutter’s needs with a full line of tools and equipment.
3. English software, installation and related training instructions and videos are available for end-users.
4. With our customer-orientated service support, maintenance and repair costs will be kept low.
5. We supply 1 year warranty and life-Long engineering service.
>>> Please Let Us Know
1.what machine do you need?
2.what materials will be processed? The size and thickness?
3.what is your business scope? Are you end user or distributor?
Any more product information, please contact us !
YITAI Die making Supply carries a variety of tools and equipment, manufacture and supplier of die making machine and material. If you’re looking for something in particular or you’re not sure which equipment is best for your needs, give us a call or Email. Our knowledgeable customer service team will help you make the right decision.
Send an inquiry right now, our sales will reply with the price within 12 hours.
