Manual Punching Machine Model YTP-06

PRODUCT FEATURES

Product Overview

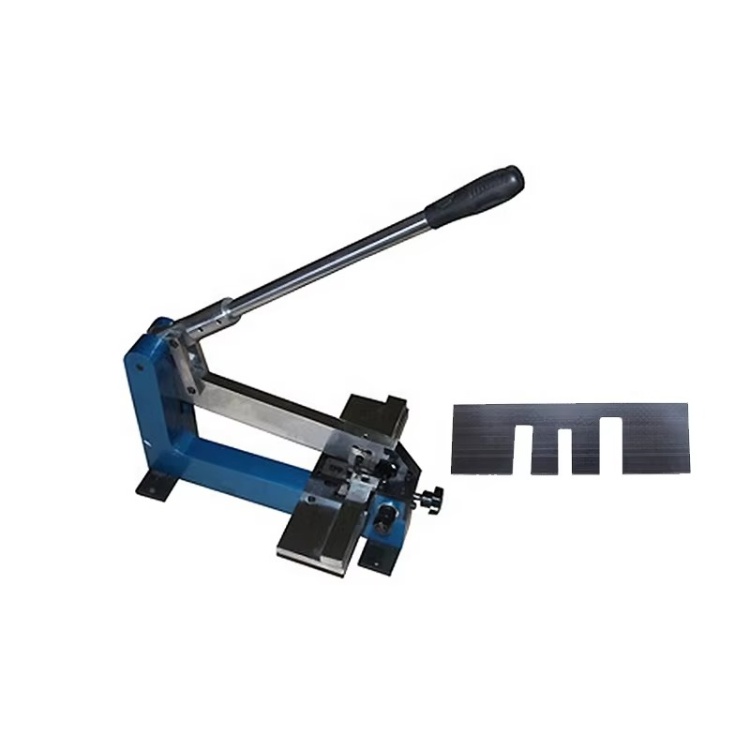

The YTP-06 Manual Punching Machine is a hand-operated tool specifically designed for punching bridge holes on finished bending steel rules used in die cutting applications. With simple mechanical structure and precision performance, it is ideal for manual die making processes in both flat and rotary die board production.

This punching machine is essential in modern die shops looking for cost-effective, durable, and accurate solutions to shape high-performance cutting rules.


Manual Punching Machine Model YTP-06


Key Features

Specially Designed for Bridge Punching:

Tailored for abnormity tool blade punching and forming bridge holes in pre-bent rules.


Manual Operation, No Power Required:

Easy to operate without electricity or air source, suitable for workshops with flexible production needs.


High Precision Punch Head:

Ensures clean and uniform hole depth and width; adjustable to meet different die rule standards.


Durable Construction:

Robust structure made of hardened steel, ensuring long-lasting performance under continuous use.


Technical Specifications

ItemSpecification
ModelYTP-06
OperationManual / Hand-operated
ApplicationSteel rule punching (bridge hole)
Compatible Rule HeightUp to 25 mm (customizable on request)
Punch Hole TypeBridge/Slot (custom punch shapes optional)
Punch Width9 mm standard (customizable)
Punch DepthAdjustable: 0–25 mm
Net WeightApprox. 10–15 kg
DimensionsApprox. 300×200×450 mm



Other Manual Die Making Machines

  • YTB-56B Rule Bender: For bending steel rules up to 56 mm with special molds.

  • YTC-56B Rule Cutter: For cutting rules with adjustable gauges and clean cross-sections.

  • YTLC-40 Double Lip Cutter: Combines straight and corner cutting in one unit.

  • YTB-25 Rule Bender: For complex shapes, includes 36 positive and negative dies.

  • YTC-25 Cutter: For straight and corner cuts up to 32 mm; optional for 40–50 mm.

  • YTP-9 Punching Machine: For punching joints and rounded corners on rules.
