Rotary Cutting Rules

PRODUCT FEATURES

What Are Rotary Cutting Rules?

Rotary cutting rules are precision blades installed on cylindrical rotary dies, used for continuous die-cutting of materials such as corrugated board, label stock, plastic film, and foam. These rules play a critical role in high-speed production environments like packaging, printing, and label converting.


Types of Rotary Cutting Rules

Item: Notched, No Notched, Tooth Rule, Curved, Creasing Rule, K Laser Crease


Choosing the right type of rule ensures accurate cutting, reduced waste, and extended tool life. Below are the most commonly used types in rotary die-making:


ItemDescription

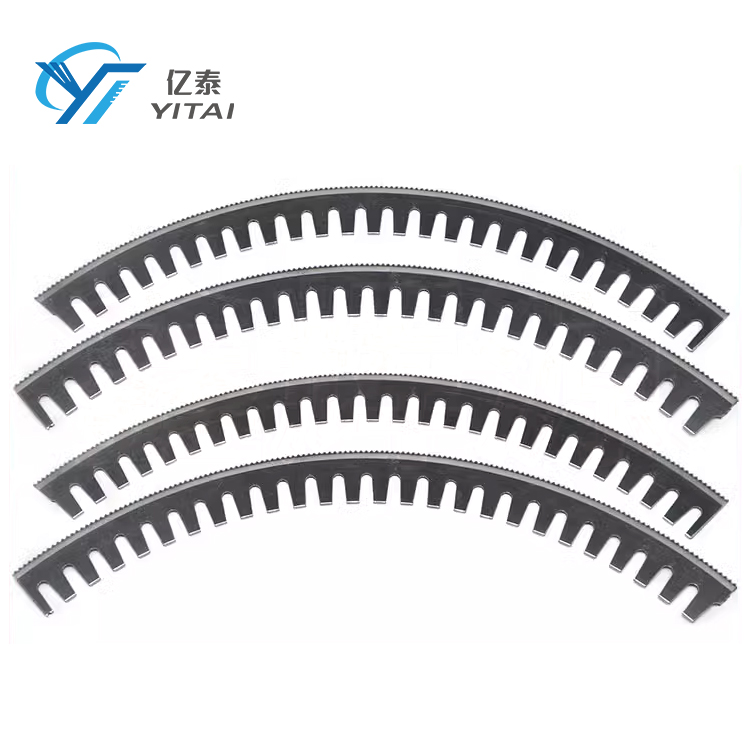

Notched RulePre-cut with precise notches for easier bending and consistent rule placement.
No Notched RuleStraight rule without notches; ideal for manual customization or simple shapes.

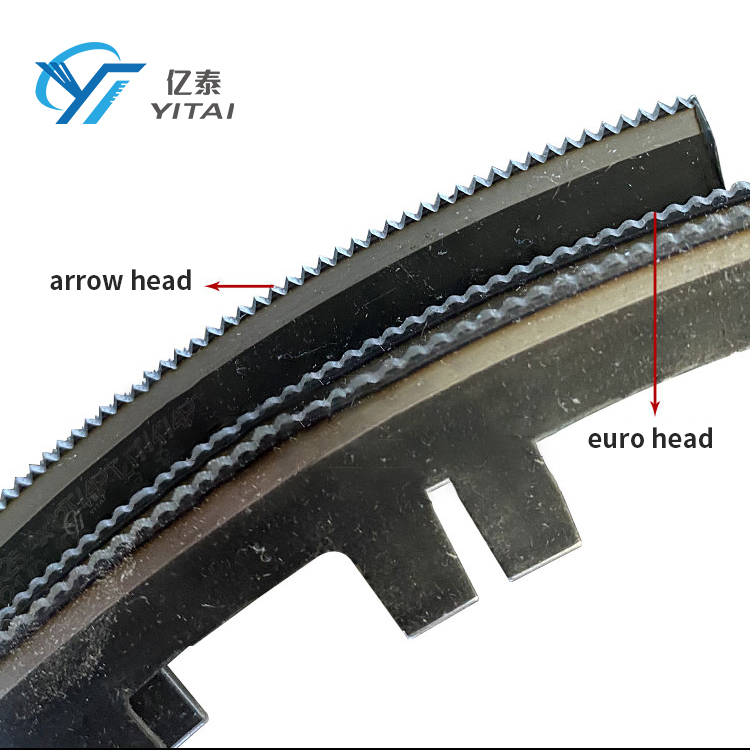

Tooth RuleFeatures regular teeth for perforation; used for tear lines in labels, tickets.
Curved RulePre-bent to specific arc radii for rotary dies; ensures accuracy in circular cuts.
Creasing RuleRounded edge used to create fold lines without cutting through the material.
K Laser CreaseSpecialized creasing rule designed for K-Laser systems; ensures precision in foil and hologram packaging.



Rotary Cutting RulesRotary Cutting Rules



Machine Parameters for Rotary Cutting Rules



Thickness (PT/mm)Arc Back Slot DiameterRule HeightEdge TypeTeeth per Inch
2 PT / 0.71 mm¢150 mm – ¢600 mm16 mm – 50 mmCF to SFDB4 – 16
3 PT / 1.07 mmCustomizableCustomizableCustomizable4 – 16
4 PT / 1.42 mmUp to ¢600 mmUp to 50 mmSFDB (Standard Form)16



Legend of Edge Types:

  • CF – Center Face Bevel

  • SFDB – Side Face Double Bevel

Other custom bevel types available on request.

All rules can be customized in height, thickness (PT), bevel type, and arc radius based on your rotary die design.
