PRODUCT FEATURES

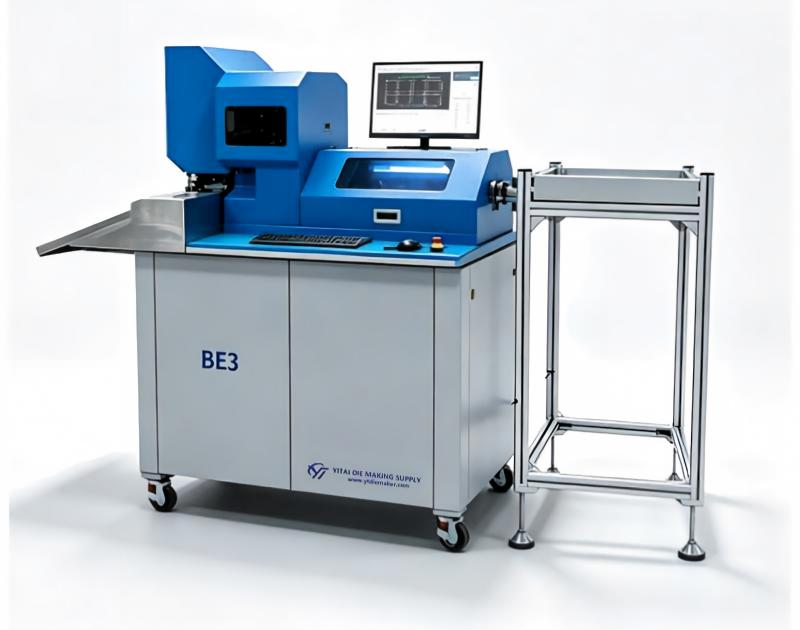

The YITAI BE3 is engineered as the ultimate budget-friendly bending solution for growing die-making workshops and startups looking to transition from manual operations to automated precision. By focusing strictly on essential features—including bending, cutting, lipping, and bridging—the BE3 deliver an exceptionally high return on investment (ROI) without compromising on structural durability.
Integrated bending & cutting function
Fast and precise rule feeding, accelerates bending speed and reduces costs
High bending forming accuracy, uniform and stable radius.
Faster processing speed and high production efficiency.
Protects the rule; prevents scratching, deformation, and edge chipping.
Compact structure, perfectly adaptive to complex shapes with multi-angles.
Alternating cyclical feeding with zero return-trip delay, drastically boosting production capacity.

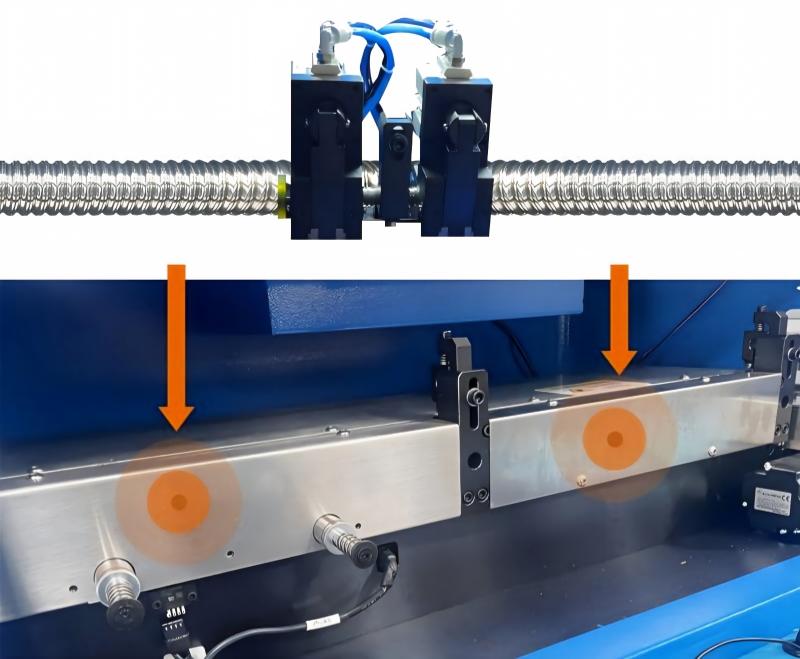

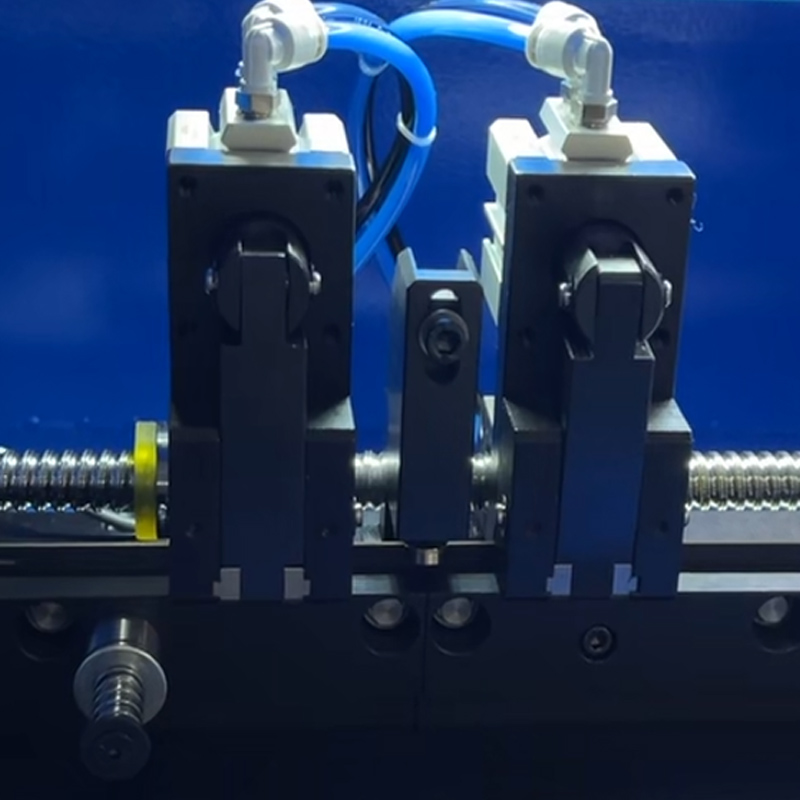

Dual-sided synchronous screw drive ensures balanced feeding force without deviation or rule twisting.
Higher feeding positioning accuracy with minimal dimensional error.
Slip-free clamping protects the blade edge; ideal for various thin and soft rules.
High structural rigidity and minimal vibration, built for long-term batch durability.

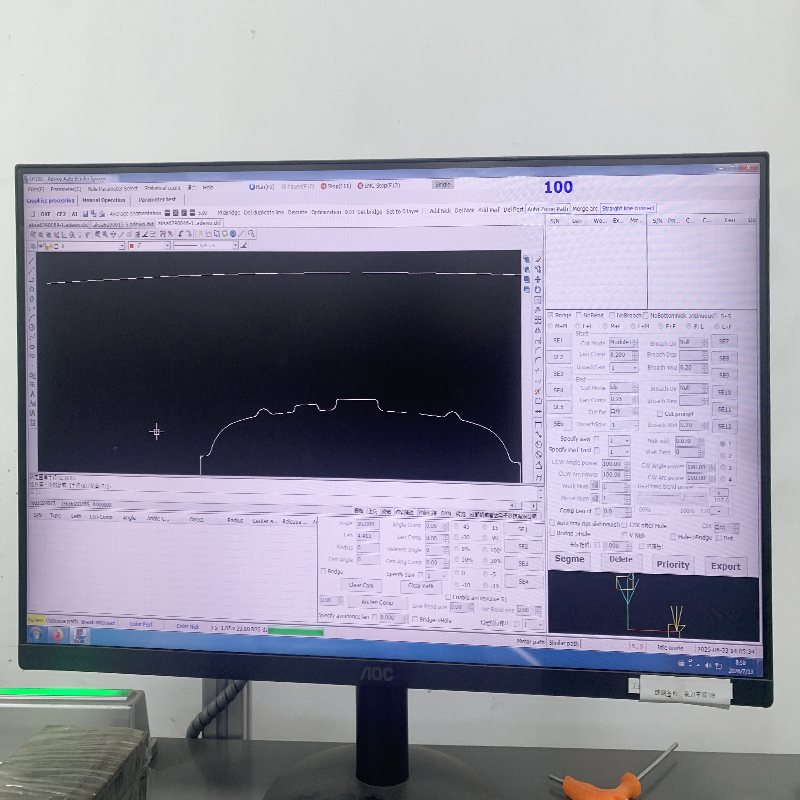

Self-developed software with automatic bridge depth adjustment.

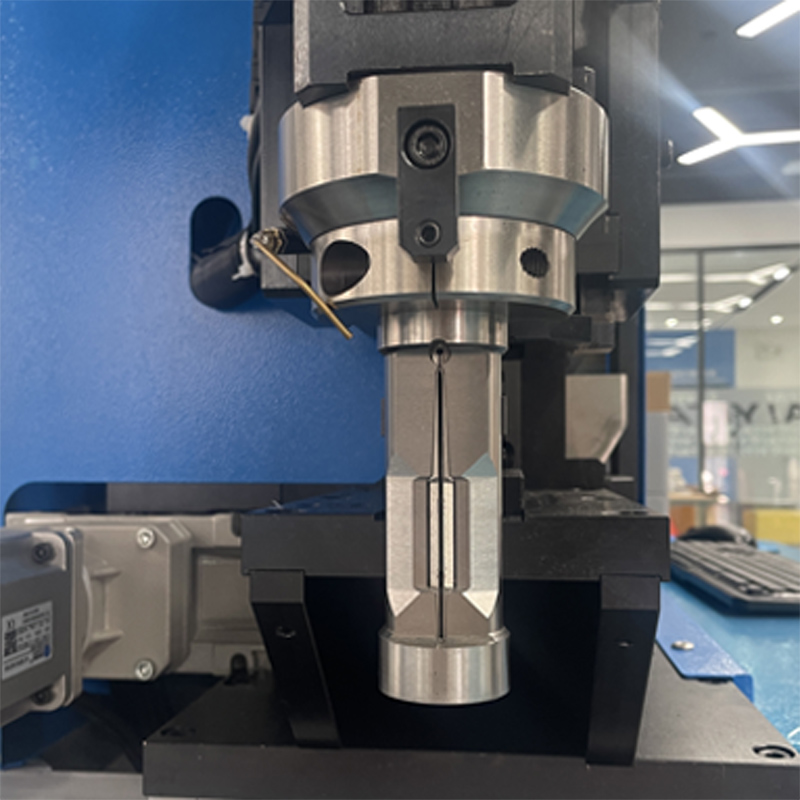

Crafted from heavy-duty tungsten steel for durability and excellent verticality (vs competitors’ trapezoidal shapes). Width tolerance within +-0.05mm (vs competitors’ tolerance of +-0.1mm).

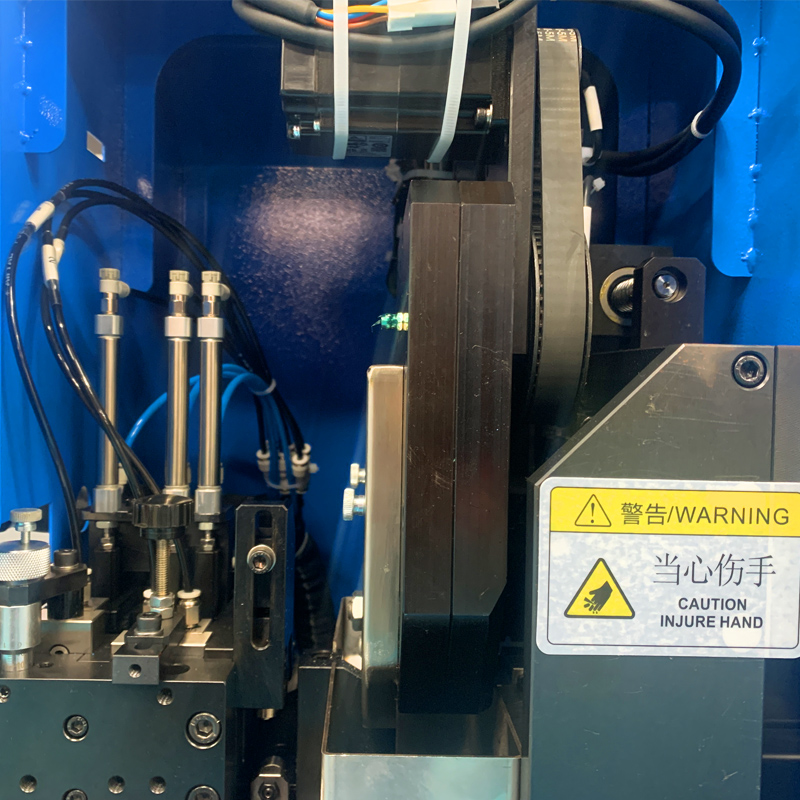

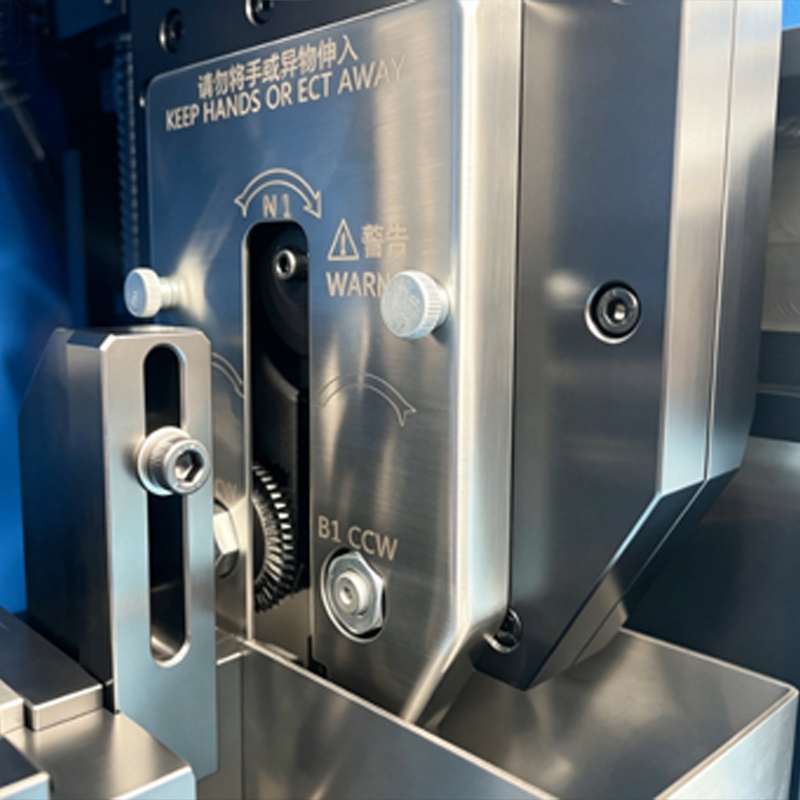

Gear-driven nicking (broaching) system utilizing only a single belt to drive the motor, ensuring stable precision and easy disassembly.
| Specification | Details |
|---|---|
| Rule Thickness | 0.45 / 0.71 / 1.07 mm( 2/3/4 pt ) |
| Rule Height | 8–23.8 mm |
| Bridge Width | >3 mm (customized available) |
| Bridge Height | 10–20 mm |
| Air Supply | 1 CFM at 6 Bar |
| Power Supply | Single Phase 220V, 20A, 3KW, 50/60Hz |
| Machine Weight | 370 kg |
| Machine Size | 2800×800×1500mm(L×W×H) |
| Packaging | Wooden case |
Packaging Details
Export standard packaging, with equipment packed in wooden boxes, ensuring stability during packaging and transportation
English-speaking engineers for installation & training
One-stop die making supply: machines + tools + consumables
English software + manuals + training videos
Fast service & low maintenance cost
1-year warranty + lifetime engineering support
As a trusted auto bender machine factory, YITAI manufactures durable, high-precision equipment for global die-making workshops.
If you’re looking for a reliable auto bending machine for die cutting or want to find a professional auto bending machine for sale, our team will help you choose the ideal setup for your production needs.
Send an inquiry right now, our sales will reply with the price within 12 hours.
