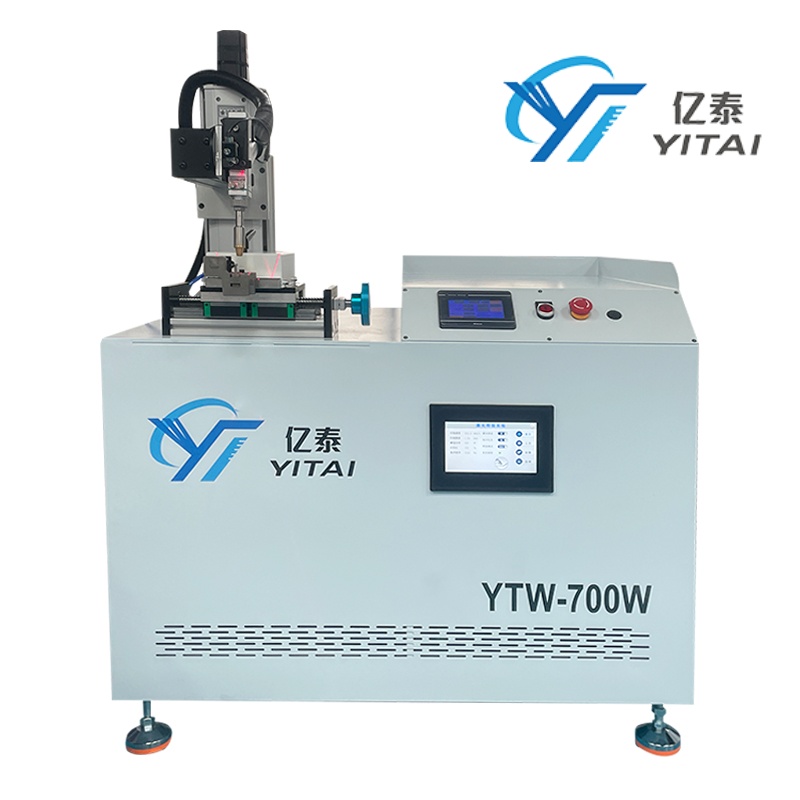

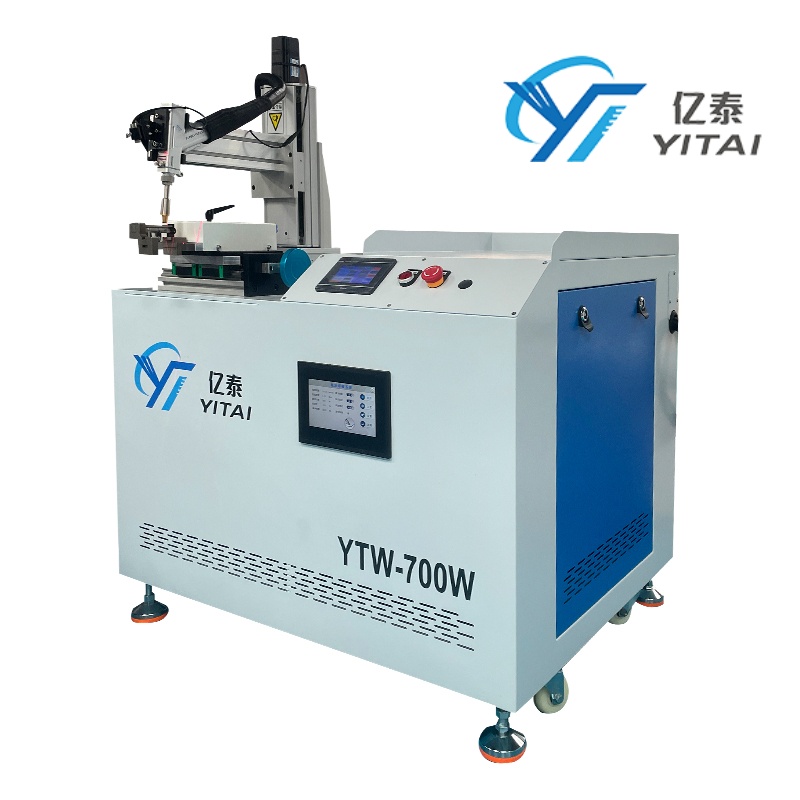

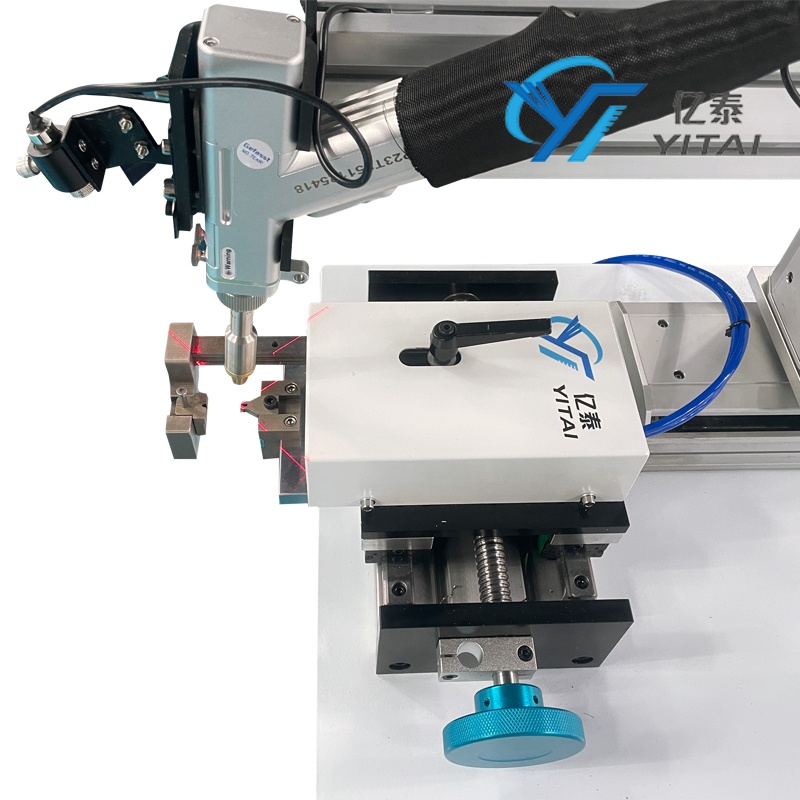

YT-W-700 Automatic Laser Welding Machine

Manual + Automatic Integrated Workstation for Die Board Production

Built for Professional Die-Making Workshops

In modern die manufacturing, welding quality directly affects die strength, cutting accuracy, and production efficiency. Traditional argon arc welding often causes excessive heat input, deformation, blackened weld marks, and requires skilled welders.

The YT-W-700 Automatic Laser Welding Machine is designed specifically for die makers and packaging die manufacturers who need strong, precise, and clean welds — without relying on highly experienced operators.

Why Laser Welding Is Better for Die Boards

Laser welding is a non-contact, low-heat process that delivers:

• Minimal deformation of thin die blades

• Clean weld seams without blackening

• High precision for small joints and interfaces

• Faster welding speed than traditional argon arc welding

• Safer and cleaner operation with no open arc or spatter

For die workshops, this means more stable dies, better cutting performance, and less post-processing.

Core Advantages of the YT-W-700

1. Easy to Use — No Professional Welder Required

The YT-W-700 is designed so that operators without welding experience can quickly learn to use it.
No welding certificate is required. The system interface supports both Chinese and English, making training simple and fast.

2. Automatic + Manual Welding in One Machine

Unlike many competitors where the welding head is fixed, this machine offers:

• Automatic welding on the worktable for stable batch work

• Handheld welding mode for flexible repair and special positions

This dual-mode design allows workshops to handle different die structures and working conditions with one machine.

3. High Precision Welding with Real-Time Monitoring

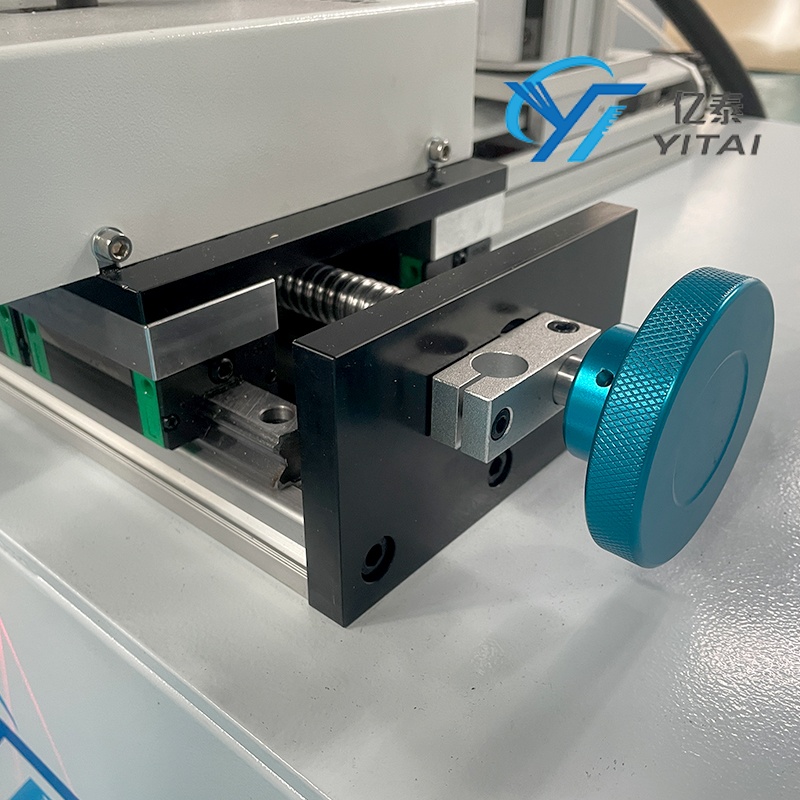

• Stable working area ensures consistent weld accuracy

• 8× magnification display allows operators to observe welding in real time

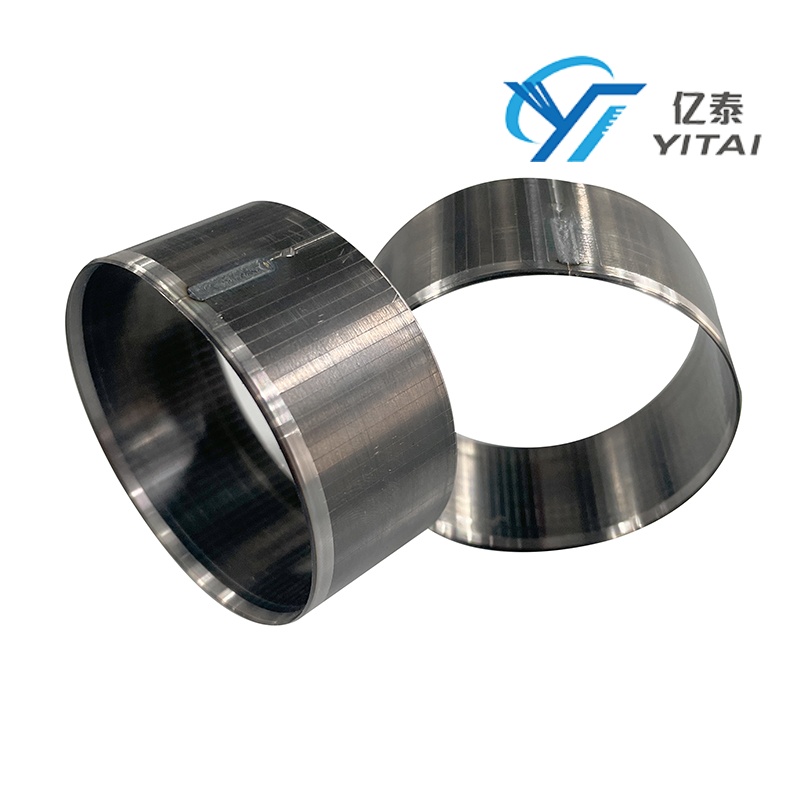

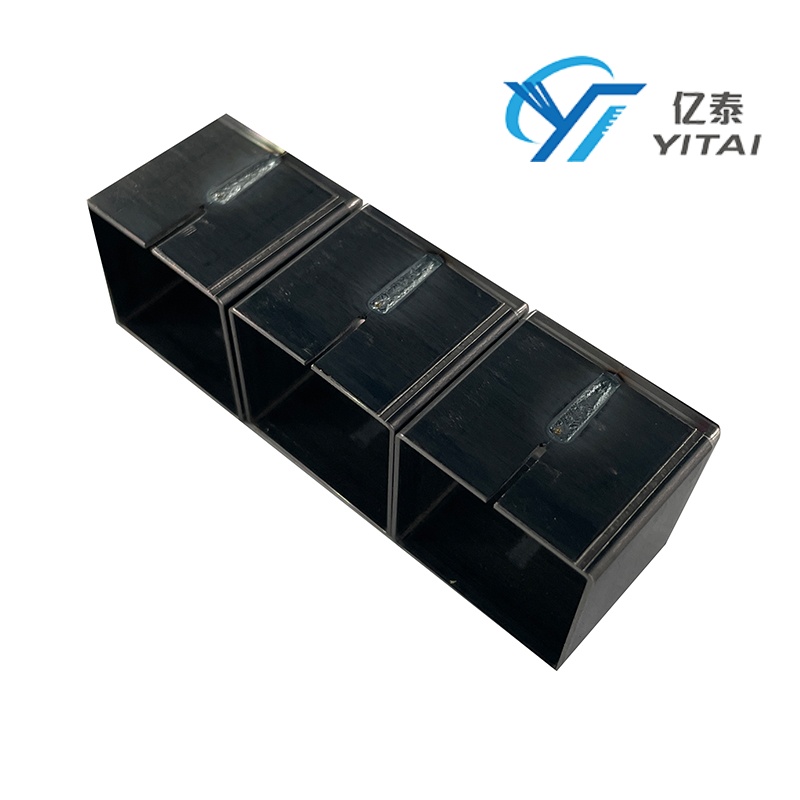

• Uniform weld seams that are smooth, bright, and non-blackened

• No damage to the blade body

This results in stronger joints and improved die durability.

4. Low Heat Input = Better Die Quality

Because laser welding concentrates energy in a small area:

• Blade deformation is minimized

• Cutting edge geometry is preserved

• Less correction and grinding are needed after welding

This is especially important for precision dies and thin cutting rules.

5. Reliable Cooling — No Freezing Risk

Many laser welding systems use water cooling, which can freeze in cold environments and requires extra maintenance.
The YT-W-700 uses a 700W air-cooled laser source, making it:

• Easier to maintain

• More stable in low-temperature regions

• Suitable for a wide range of workshop environments

Technical Specifications

Main Components (Industrial-Grade Configuration)

Included Accessories

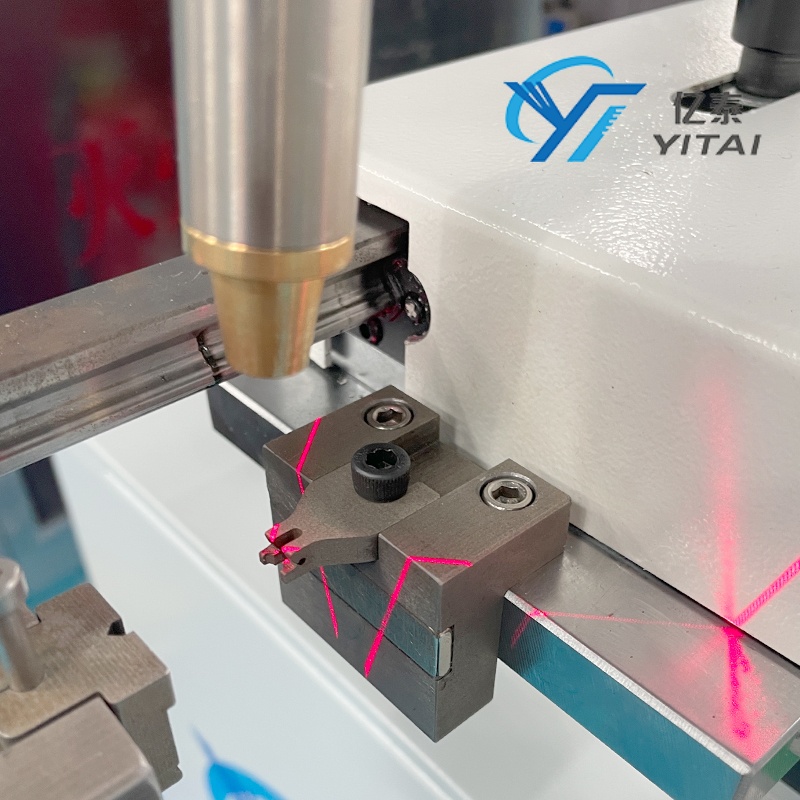

• Dedicated laser die welding fixture (1 set)

• 20 protective lenses

• Supports welding of 80 mm rule height

• 12-month machine warranty

• Optional CCD system available upon request

Compared with Traditional Designs

Who Is This Machine For?

The YT-W-700 is ideal for:

• Flatbed die-cutting factories

• Packaging die manufacturers

• Carton box die workshops

• Die repair and modification departments

If your factory needs stronger weld joints, cleaner weld seams, and higher production efficiency, this laser welding solution is a reliable upgrade from traditional welding methods.
